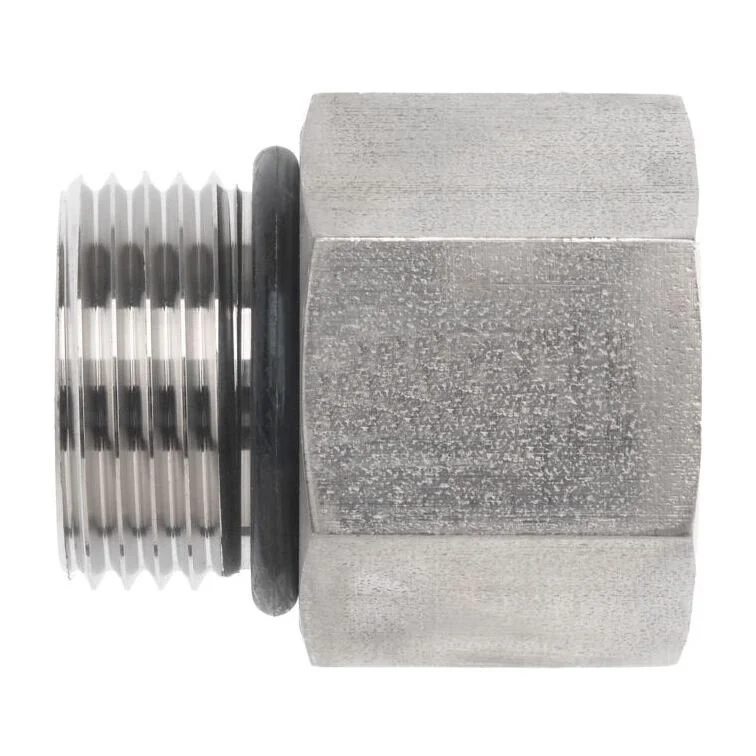

The Brennan 6405-08-04-O is a 1/2" MORB to 1/4" FNPT straight fitting designed for high-pressure hydraulic systems. Constructed from steel with Cr3 plating, it offers exceptional durability and corrosion resistance. Equipped with a NBR O-ring seal, it ensures a tight, leak-free connection. The fitting meets SAE J514 and J476 standards, providing reliable performance in industrial, automotive, and fluid control applications. Its compact design allows for easy installation in tight spaces.
Fitting Chart- 1/2" MORB x 1/4" FNPT straight fitting for versatile hydraulic connections
- Constructed from high-strength steel for long-lasting performance
- Cr3 plated to resist corrosion and wear
- NBR O-ring provides leak-free sealing
- Meets SAE J514/J476 standards for reliable industrial performance
- Compact and easy to install in tight hydraulic systems
| Thread B1 Type | Male SAE O-Ring Boss |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill In | 0.391 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Female NPTF |
| Thread B2 Size | 1/4-18 |
| Thread B2 Drill In | 0.281 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 0.875 |
| Overall Length L In | 1.02 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| O-Ring / Seal Material | Nbr |
| Weight Lbs | 0.1333 |
