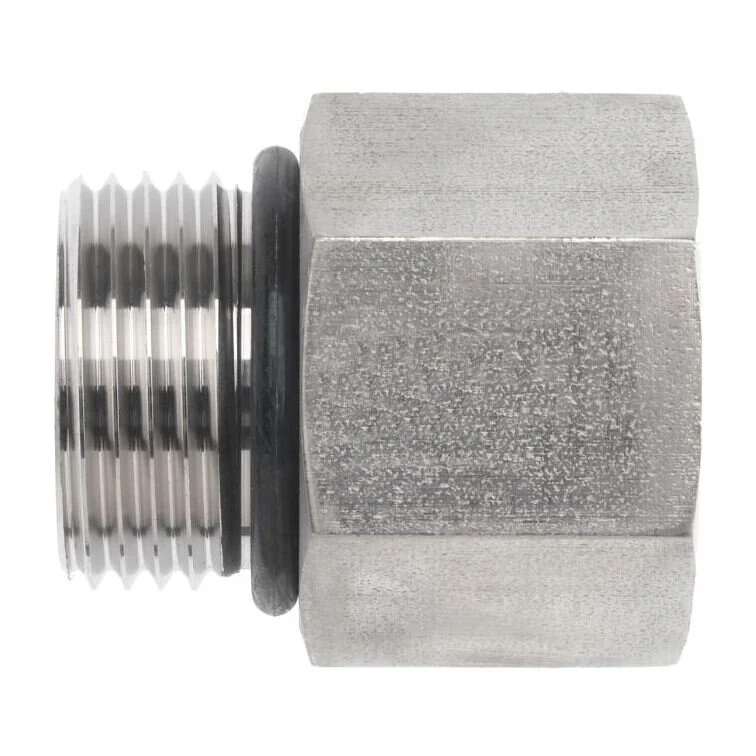

The 6410-16-12-O hydraulic fitting is engineered for dependable, leak-resistant performance in demanding high-pressure systems. Designed with a 1" Male O-Ring Boss (MORB) to 3/4" Female O-Ring Boss (FORB) connection, it ensures secure sealing and precise fit per SAE J514 standards. Built from high-strength straight steel with Cr3 plating, it offers excellent corrosion resistance and long service life. The integrated NBR O-ring provides superior leak prevention, even under fluctuating hydraulic loads. Ideal for industrial, agricultural, and heavy-equipment hydraulic applications requiring reliable fluid transfer.
Fitting Chart- 1" MORB x 3/4" FORB straight hydraulic connector
- Precision-machined to SAE J514 specifications
- Durable steel construction with corrosion-resistant Cr3 plating
- NBR O-ring ensures reliable, leak-free sealing
- Compact 1.71" length for tight-space installations
- Suitable for high-pressure hydraulic systems
| Thread B1 Type | Male SAE O-Ring Boss |
| Thread B1 Size | 1-5/16-12 |
| Thread B1 Drill In | 0.844 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Female SAE O-Ring Boss |
| Thread B2 Size | 1-1/16-12 |
| Thread B2 Drill In | 0.609 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 1.5 |
| Overall Length L In | 1.71 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| O-Ring / Seal Material | Nbr |
| Weight Lbs | 0.465 |
