6463-53-02

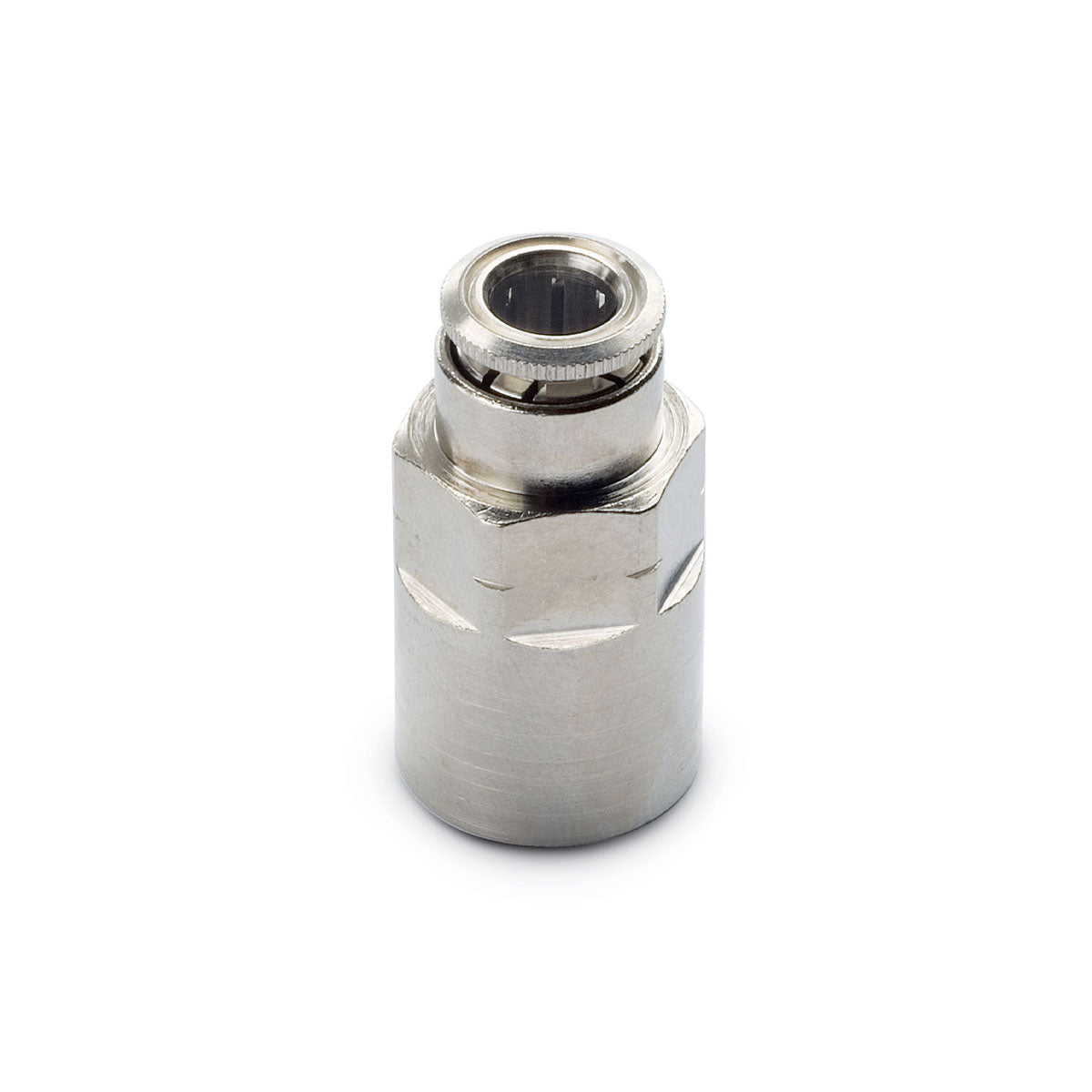

This compact female straight fitting is designed to secure miniature 5/32" (4mm) OD polymer tubing directly to a 1/8" Female NPT thread port. Featuring an all-metal nickel-plated brass architecture, it offers excellent mechanical defense against sudden impact shocks and industrial fluids.

The internal high-retention metal collet provides a leak-free mechanical hold, making it an outstanding choice for micro-pneumatic circuits, laboratory instrumentation, and high-density control panels.

• Secure push-in mechanism accommodates a 5/32-inch tube outer diameter with an absolute vacuum-tight mechanical grip
• Female 1/8-inch NPT threaded connection interface allows for a rock-solid, vibration-proof port combination
• Precision-forged all-metal nickel-plated brass core prevents rust, scale build-up, and chemical degradation
• Integrated heavy-duty Buna-N O-rings prevent structural leakage under continuous mechanical shifts
• Compact internal hex structural footprint enables fast socket wrench tightening within high-density manifolds
• Full inner diameter design profile guarantees maximized volumetric air velocity with zero pressure drops
