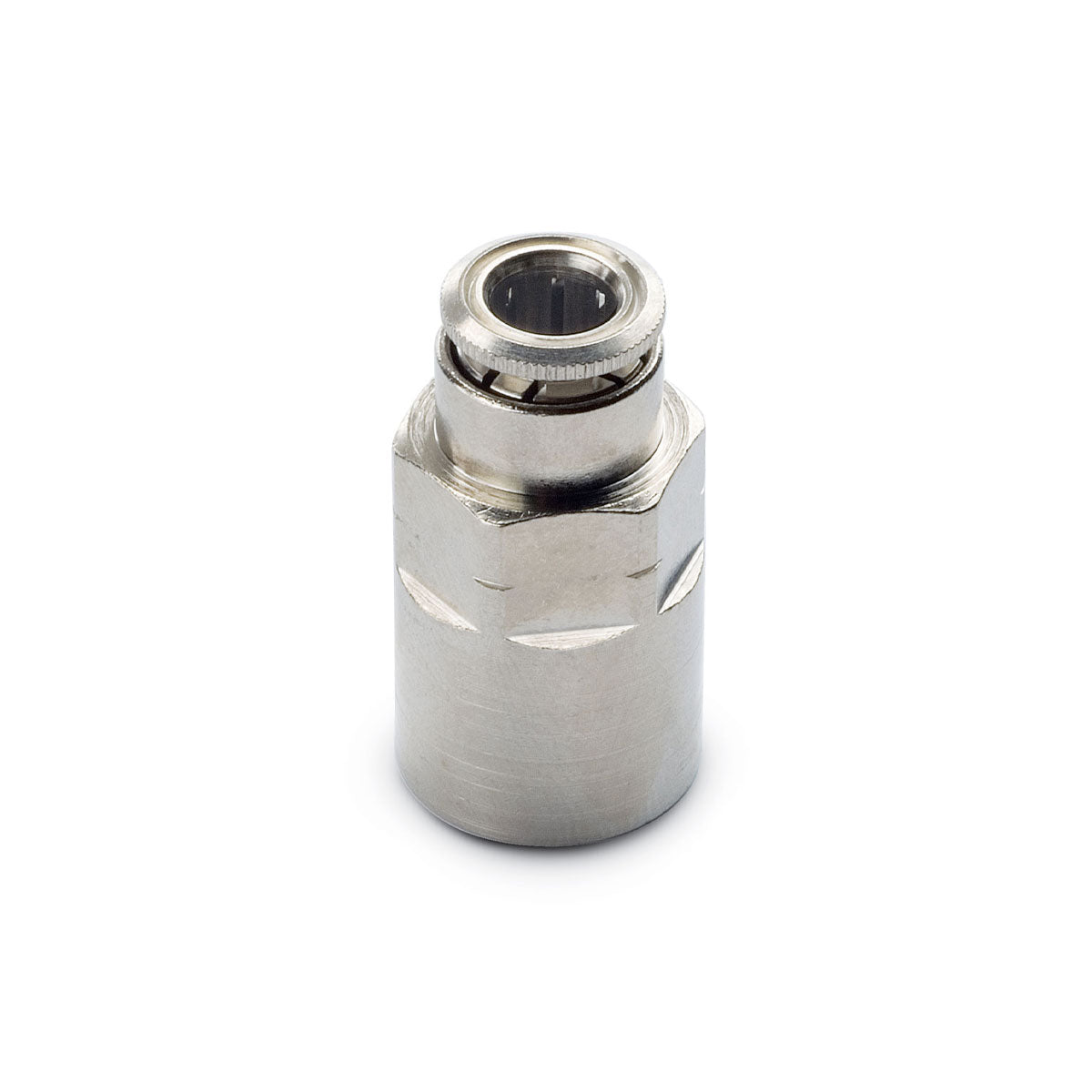

6463-53-04 Push-In Female Straight Connector is designed to adapt micro-bore line sizes by joining a 5/32" (4mm) push-in tube line to a standard 1/4" Female NPT connection port. The robust nickel-plated brass body protects internal seals from high thermal fatigue and external wear, while its space-saving outer dimensions allow for quick layout adjustments. The advanced internal metal collet provides uniform grip across the entire circumference of the tube, helping prevent pressure leaks.
- Rugged push-in collar locks 5/32-inch OD tubing firmly in position to help prevent accidental decoupling
- Precision-machined 1/4-inch Female NPT threaded base provides reliable sealing stability under high loads
- High-grade nickel-plated brass construction offers excellent structural durability in demanding industrial environments
- Premium Buna-N internal sealing rings help isolate air pathways and prevent systemic leaks
- Low-profile geometric engineering maximizes clearance inside crowded automation machinery panels
- Unrestricted full-flow bore design supports efficient pneumatic performance with minimal channel turbulence
| Item ID | 6463-53-04 |
| Product Type | Push-In Female Straight Connector |
| Connections | 5/32" Tube x 1/4" FNPT |
| Supplier Name | Camozzi Automation, Inc. |
| Application | Industrial Automated Machine Instrumentation Plumbing |
| Kit Function | Linear Leak-Free Tubing Connection |
| Compatibility | Standard 5/32" (4mm) OD Polymer Tubing |
| Installation Type | Threaded Female and Push-In Connection |
| Compatible Media | Compressed Air and Inert Industrial Gases |
| Material | All-Metal Nickel-Plated Brass Shell |
| Pressure Rating | Max 232 PSI / Vacuum up to 28" Hg |
