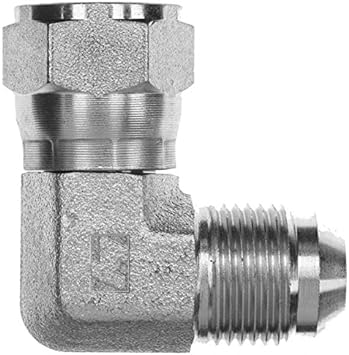

This premium 90° swivel elbow is engineered to provide a durable, leak-resistant connection between two 1/4" JIC hydraulic ports. Forged from high-strength steel and treated with corrosion-resistant Cr3 plating, it withstands the rigors of heavy-duty hydraulic systems. The swivel-nut design allows easy alignment and installation without twisting hoses or fittings, simplifying maintenance and improving reliability. Compact yet rugged, this elbow fitting is ideal for tight spaces and complex hose routing in industrial, marine, and mobile hydraulic applications. With professional-grade build quality, it offers dependable performance under pressure and frequent use.
Fitting Chart- Precision-machined 37° male JIC flare and female JIC swivel provide a secure, leak-free seal
- Forged steel construction with Cr3 plating offers high strength and corrosion resistance
- Swivel-nut design allows smooth alignment and easy installation without hose twisting
- 90° elbow configuration supports efficient hose routing in compact or tight spaces
- Designed for high-pressure hydraulic systems with reliable performance under load
- Compact, robust, and maintenance-friendly for industrial, marine, and mobile equipment use
| Connection 1 | 1/4" MJIC Male (7/16-20) |
| Connection 2 | 1/4" FJIC Swivel Female (7/16-20) |
| Connection Type | 37° SAE J514 JIC |
| Shape | 90° Elbow |
| Material | Steel (forged or straight steel depending on variant) |
| Suitable For | High-pressure hydraulic systems |
