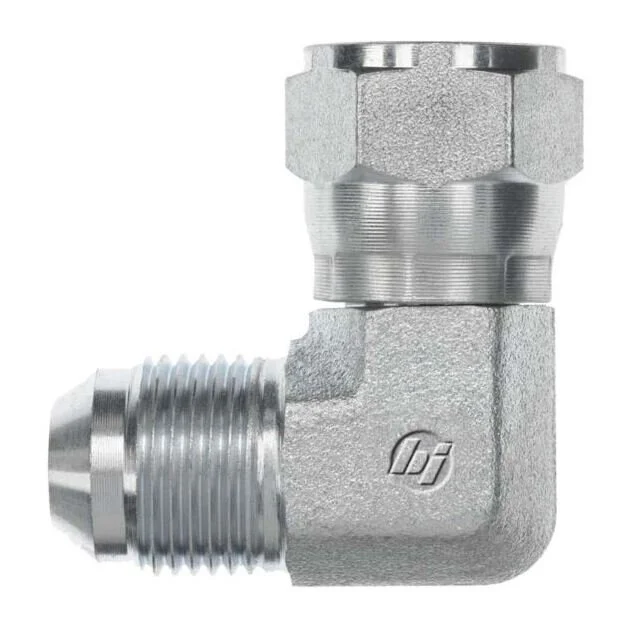

The Brennan Industries 6500-06-06-FG is a high-pressure 90° elbow hydraulic fitting connecting 3/8" Male JIC (37° flare) to 3/8" Female JIC swivel (37° flare) ports. Forged from high-strength steel and finished with corrosion-resistant Cr3 plating, this fitting ensures durability and long-lasting performance in demanding hydraulic systems. Its swivel design allows easy alignment and leak-free installation, while the 90° configuration helps route hydraulic lines in tight spaces. Rated for high-pressure applications, it is ideal for industrial machinery, fluid transfer systems, and maintenance tasks. Precision threads provide a secure, vibration-resistant seal.
Fitting Chart- 90° elbow design allows efficient routing of hydraulic lines in compact spaces
- Forged steel construction provides superior strength and long-term durability
- Swivel connection enables easy alignment and leak-free installation
- Cr3 plating protects against corrosion and harsh environmental conditions
- Ideal for high-pressure hydraulic systems, industrial equipment, and machinery maintenance
- Precision threads ensure stable and vibration-resistant performance
| Specification | Details |
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 9/16-18 |
| Thread B1 Drill In | 0.297 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Female JIC Swivel 37 Deg Flare |
| Thread B2 Size | 9/16-18 |
| Thread B2 Drill In | 0.297 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 0.688 |
| C Hex 1 In | 0.562 |
| Overall Length L In | 1.25 |
| Overall Length L2 In | 0.87 |
| Centerline Length M In | 1.06 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight Lbs | 0.11 |
| California Residents | Prop-65 Warning |
