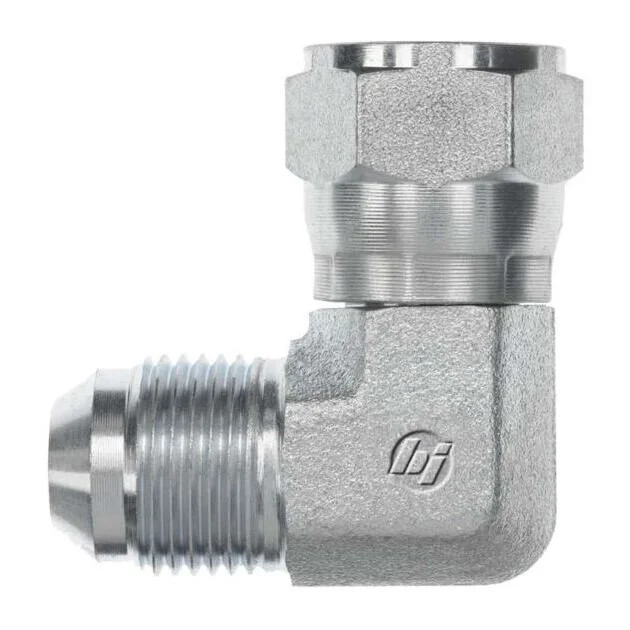

The 6500-06-08-FG 90-degree elbow fitting is designed for secure, leak-free hydraulic connections in tight or angled system layouts. Featuring a 3/8" Male JIC 37° flare to 1/2" Female JIC swivel connection, it delivers precision, reliability, and easy installation. Manufactured from forged steel with Cr3 plating, it provides exceptional strength and corrosion resistance for demanding high-pressure environments. Its compact design ensures smooth fluid flow even in limited-space assemblies. Ideal for industrial machinery, heavy equipment, and hydraulic hose routing.
Fitting Chart- 90-degree hydraulic elbow for angled connection routing
- 3/8" MJIC x 1/2" FJIC swivel for secure, leak-proof assembly
- Made from robust forged steel for high durability
- Corrosion-resistant Cr3 plating ensures long service life
- Precision machining meets SAE J514 standards
- Compact design with smooth internal flow path
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 9/16-18 |
| Thread B1 Drill In | 0.297 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Female JIC Swivel 37 Deg Flare |
| Thread B2 Size | 3/4-16 |
| Thread B2 Drill In | 0.391 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 0.875 |
| C Hex 1 In | 0.75 |
| Overall Length L In | 1.38 |
| Overall Length L2 In | 0.95 |
| Centerline Length M In | 1.14 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight Lbs | 0.2062 |
| California Residents | Prop-65 Warning |
