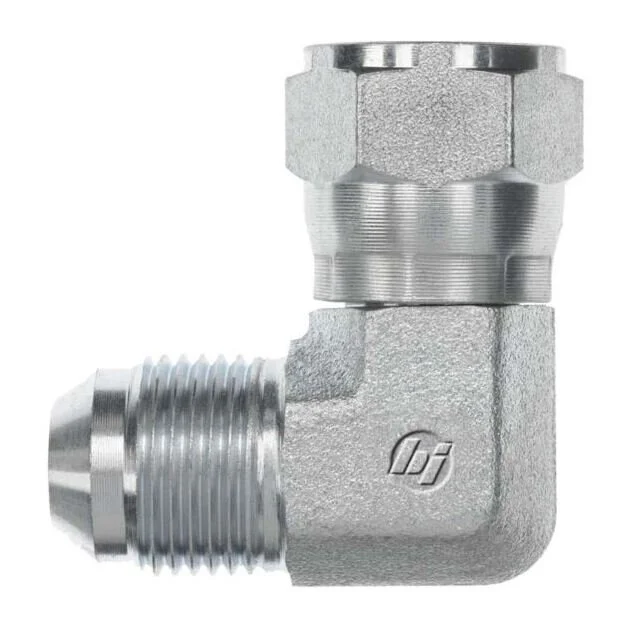

The Brennan 6500-08-08-FG is a high-pressure 90° JIC elbow designed for connecting 1/2" Male JIC to 1/2" Female JIC Swivel ports with a secure, leak-free seal. Built from forged steel, this fitting offers superior strength and durability for demanding hydraulic systems. The 90-degree design allows efficient routing of hoses and tubing in tight or angled installations. Precision-machined JIC 37° flare threads ensure reliable performance under high vibration and pressure. Ideal for industrial machinery, heavy equipment, and hydraulic maintenance applications.
Fitting Chart- 90° elbow design helps route hydraulic lines cleanly in confined or angled spaces
- Forged steel construction provides strength and long service life in high-pressure applications
- Designed with JIC 37° flare threads for secure, leak-resistant connections
- Female swivel end allows easier installation and alignment without twisting hoses
- Precision machining ensures stable, vibration-resistant performance
- Suitable for heavy-duty hydraulic systems and high-pressure fluid transfer
| Specification | Details |
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill In | 0.391 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Female JIC Swivel 37 Deg Flare |
| Thread B2 Size | 3/4-16 |
| Thread B2 Drill In | 0.391 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 0.875 |
| C Hex 1 In | 0.75 |
| Overall Length L In | 1.38 |
| Overall Length L2 In | 0.95 |
| Centerline Length M In | 1.25 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight Lbs | 0.22 |
