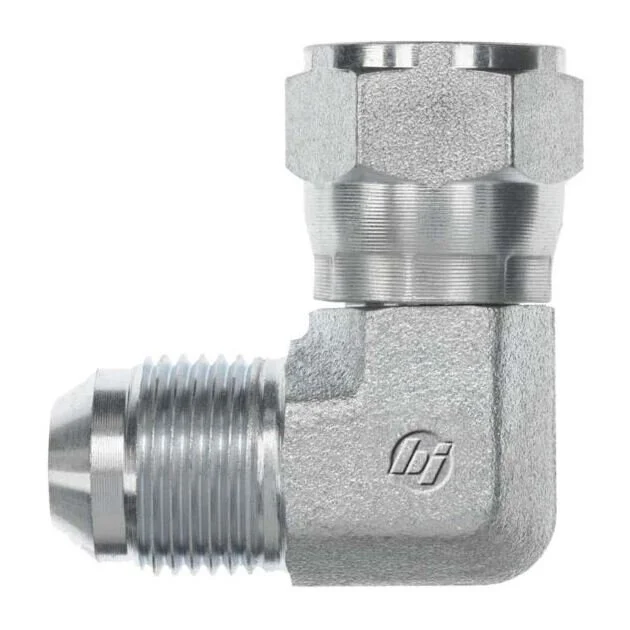

The 10MJ-10FJS 90° Elbow Forged Fitting from Brennan Industries of Texas is a high-pressure hydraulic connector designed for reliable flow direction changes. It features a -10 (5/8") Male JIC 37° Flare to -10 (5/8") Female JIC Swivel 37° Flare connection with 7/8-14 threads, manufactured to SAE J514 standards for secure, leak-free, metal-to-metal sealing. Produced from forged steel, this elbow offers exceptional strength for demanding hydraulic applications. A Cr3 plated finish enhances corrosion resistance, ensuring long service life in industrial environments. The 90-degree design allows efficient hose routing in tight spaces.
Fitting Chart- -10 (5/8") Male JIC 37° Flare to -10 (5/8") Female JIC Swivel 37° Flare, 7/8-14 threads
- JIC 37° flare design provides metal-to-metal sealing (no O-ring required)
- Manufactured to SAE J514 specifications for dependable high-pressure performance
- Forged steel construction for superior strength and durability
- Cr3 plated finish offers enhanced corrosion resistance
- 90° elbow configuration enables efficient routing in compact hydraulic layouts
- Compact dimensions for easy installation
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 7/8-14 |
| Thread B1 Drill In | 0.484 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Female JIC Swivel 37 Deg Flare |
| Thread B2 Size | 7/8-14 |
| Thread B2 Drill In | 0.484 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 1 |
| C Hex 1 In | 0.875 |
| Overall Length L In | 1.62 |
| Overall Length L2 In | 1.12 |
| Centerline Length M In | 1.45 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight Lbs | 0.3119 |
