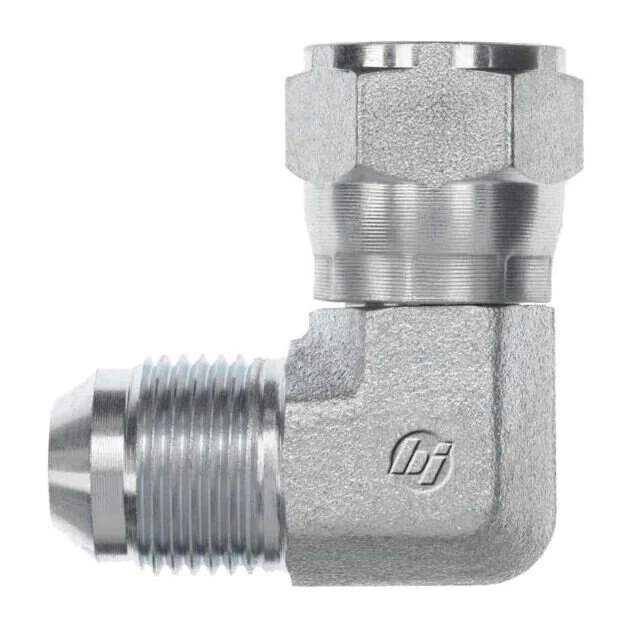

The 12 MJIC x -08 FJIC Swivel 90° Elbow from Brennan Industries of Texas is a high-pressure hydraulic fitting engineered for durability and leak-free performance. It features a Male JIC 37° Flare (1-1/16-12) connection transitioning to a Female JIC Swivel 37° Flare (3/4-16), built to SAE J514 standards. Constructed from forged steel, this elbow ensures superior strength for demanding hydraulic applications. The Cr3 plating offers enhanced corrosion resistance, extending service life. Ideal for routing hydraulic lines where a strong and reliable 90-degree directional change is required.
Fitting Chart- Male JIC 37° Flare (1-1/16-12) to Female JIC Swivel 37° Flare (3/4-16) connection
- Built to SAE J514 standards for consistent, leak-proof performance
- Forged steel body ensures durability in high-pressure environments
- Cr3 plating provides resistance against corrosion and wear
- Optimized 90° elbow design for efficient hose and tube routing
- Compact dimensions (L: 1.55", L2: 1.12", M: 1.66") for easy installation in tight spaces
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-1/16-12 |
| Thread B1 Drill In | 0.609 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Female JIC Swivel 37 Deg Flare |
| Thread B2 Size | 3/4-16 |
| Thread B2 Drill In | 0.391 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 0.875 |
| C Hex 1 In | 1.062 |
| Overall Length L In | 1.55 |
| Overall Length L2 In | 1.12 |
| Centerline Length M In | 1.66 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight Lbs | 0.475 |
