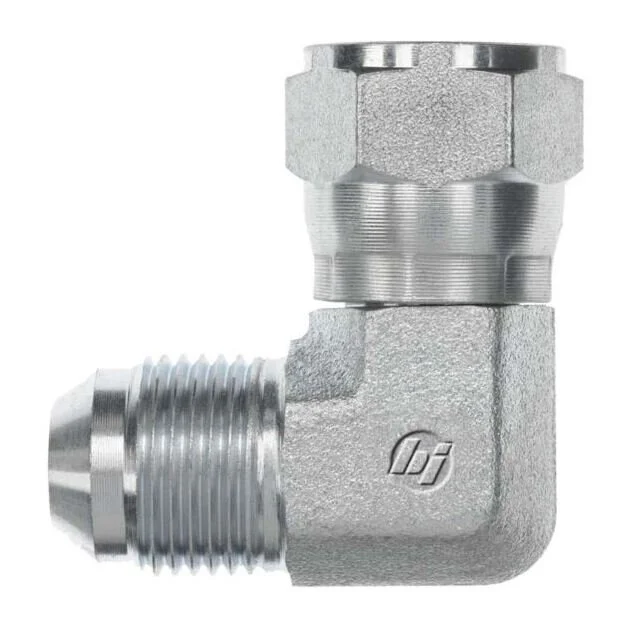

The 6500-12-12-FG is a high-pressure 90° JIC elbow adapter designed to connect 3/4" MJIC to 3/4" FJIC swivel with a secure and leak-free 37° flare seal. Manufactured from durable steel forging and finished with Cr3 plating, it ensures maximum strength and corrosion resistance in demanding hydraulic environments. This elbow design allows efficient routing of hydraulic lines in tight or angled spaces without compromising flow. Precision-engineered to SAE J514 standards, it offers reliable performance in industrial, construction, agricultural, and fluid power systems. With a robust build and swivel flexibility, it enhances installation convenience and long-term reliability.
Fitting Chart- 3/4" Male JIC x 3/4" Female JIC swivel elbow (90°)
- High-strength steel forging for maximum durability
- Corrosion-resistant Cr3 plated finish
- Precision-machined to SAE J514 specifications
- Ideal for tight-space hydraulic routing requiring a 90° turn
- Smooth swivel connection for easy assembly and maintenance
| Specification | Details |
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-1/16-12 |
| Thread B1 Drill In | 0.609 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Female JIC Swivel 37 Deg Flare |
| Thread B2 Size | 1-1/16-12 |
| Thread B2 Drill In | 0.609 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 1.25 |
| C Hex 1 In | 1.062 |
| Overall Length L In | 1.75 |
| Overall Length L2 In | 1.18 |
| Centerline Length M In | 1.66 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight Lbs | 0.542 |
| California Residents | Prop-65 Warning |
