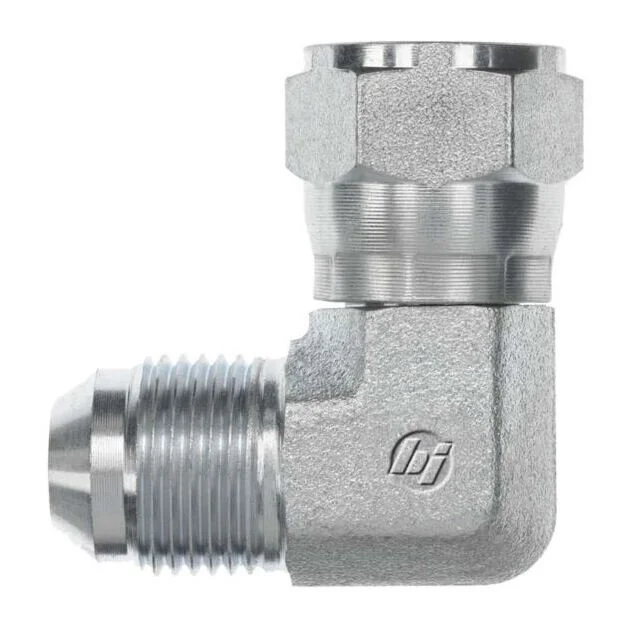

The Brennan 6500-16-16-FG is a heavy-duty 90-degree elbow adapter engineered to connect 1" Male JIC to 1" Female JIC Swivel ports with secure and leak-free performance. Built from high-strength steel forging, it is designed to withstand demanding hydraulic applications and high system pressures. The JIC 37° flare interface ensures vibration resistance and reliable sealing under tough working conditions. Its angled design enables efficient routing in tight spaces while maintaining full flow. Ideal for industrial equipment, fluid power systems, and high-pressure hydraulic lines.
Fitting Chart- Heavy-duty 90° JIC-to-JIC swivel elbow for secure hydraulic connections
- Forged steel construction provides maximum durability and pressure resistance
- JIC 37° flare design ensures strong, vibration-resistant, leak-free sealing
- Swivel female JIC end allows easier installation and alignment
- Cr3 plating enhances corrosion protection in harsh environments
- Suitable for high-pressure hydraulic applications and tight-space routing
| Specification | Details |
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-5/16-12 |
| Thread B1 Drill In | 0.844 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Female JIC Swivel 37 Deg Flare |
| Thread B2 Size | 1-5/16-12 |
| Thread B2 Drill In | 0.844 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 1.5 |
| C Hex 1 In | 1.312 |
| Overall Length L In | 2 |
| Overall Length L2 In | 1.4 |
| Centerline Length M In | 1.81 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight Lbs | 0.85 |
