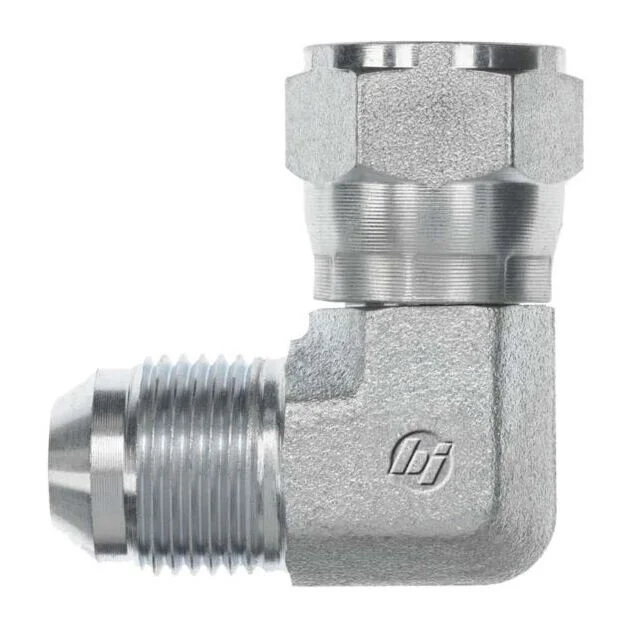

The 6500-20-20-FG is a heavy-duty 90° hydraulic elbow engineered for high-pressure performance and reliable leak-free operation. Designed with a 1-1/4" Male JIC 37° flare and 1-1/4" Female JIC swivel, it provides a secure, precision-fit connection suitable for demanding industrial and mobile hydraulic systems. Made from forged steel and finished with corrosion-resistant Cr3 plating, this fitting ensures excellent durability in harsh environments. Its large-diameter flow design supports high fluid volume and consistent pressure delivery. Ideal for machinery, hydraulic lines, and high-capacity equipment where strength and dependability are essential.
Fitting Chart- 90-degree elbow for efficient routing in tight hydraulic layouts
- 1-1/4" MJIC x 1-1/4" FJIC swivel ensures strong and leak-proof connection
- Forged steel construction for maximum durability and strength
- Cr3 plating provides superior corrosion resistance
- Precision-made to meet SAE J514 standards
- Supports high-pressure applications in industrial and heavy equipment
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-5/8-12 |
| Thread B1 Drill In | 1.078 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Female JIC Swivel 37 Deg Flare |
| Thread B2 Size | 1-5/8-12 |
| Thread B2 Drill In | 1.078 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 2 |
| C Hex 1 In | 1.625 |
| Overall Length L In | 2.31 |
| Overall Length L2 In | 1.67 |
| Centerline Length M In | 2.06 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight Lbs | 1.5687 |
| California Residents | Prop-65 Warning |
