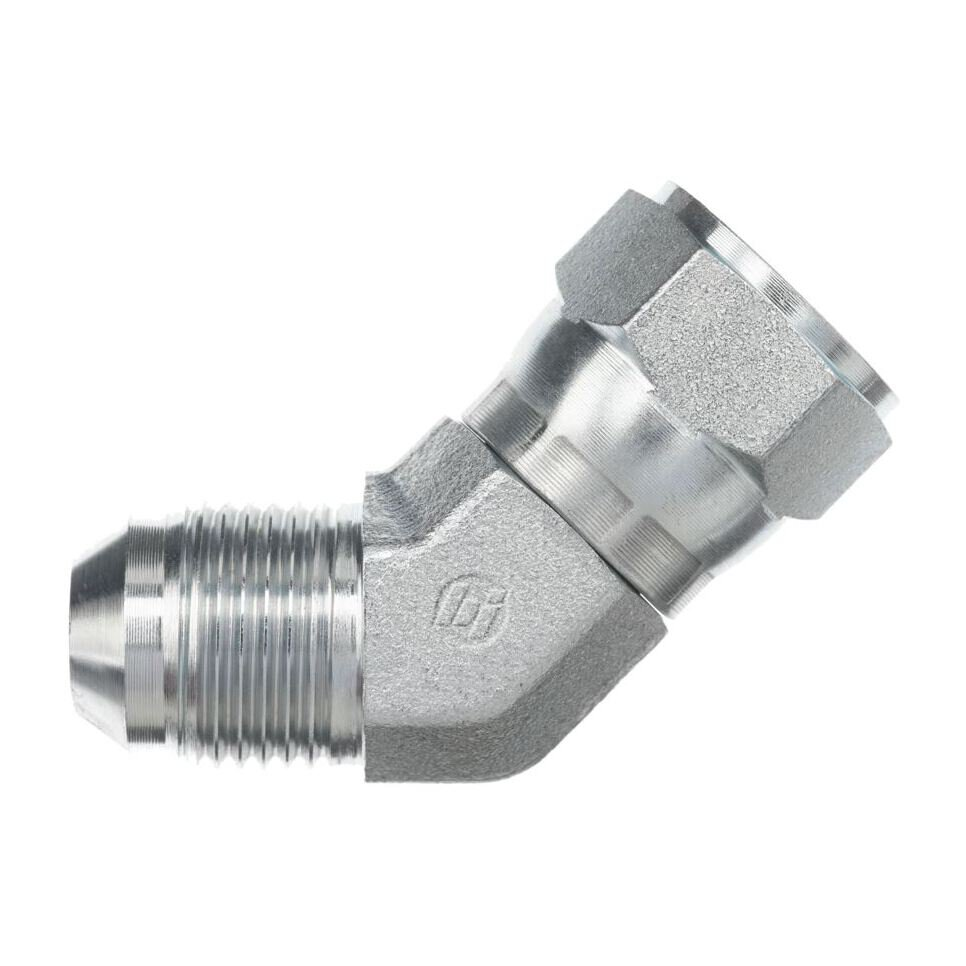

The Brennan 6502-08-08-FG is a 1/2" MJIC x 1/2" FJIC swivel 45° elbow fitting engineered for high-pressure hydraulic systems. Made from forged steel with Cr3 plating, it provides excellent strength and corrosion resistance. The swivel design ensures easy alignment and leak-free connections in tight or angled installations. Built to SAE J514 standards, it delivers reliable performance for industrial, automotive, and fluid control applications. Its compact, 45-degree configuration allows for efficient routing in complex hydraulic systems.
Fitting Chart- 1/2" MJIC x 1/2" FJIC 45° swivel elbow fitting for flexible hydraulic connections
- Forged steel construction for high strength and durability
- Cr3 plated to resist corrosion and wear
- Swivel design for easy alignment and leak-free performance
- Complies with SAE J514 standards for industrial reliability
- Compact 45° design for tight or angled installation spaces
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill In | 0.391 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Female JIC Swivel 37 Deg Flare |
| Thread B2 Size | 3/4-16 |
| Thread B2 Drill In | 0.391 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 0.75 |
| C Hex 1 In | 0.875 |
| Overall Length L In | 1.28 |
| Centerline Length M In | 0.98 |
| Shape | 45 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight Lbs | 0.18 |
