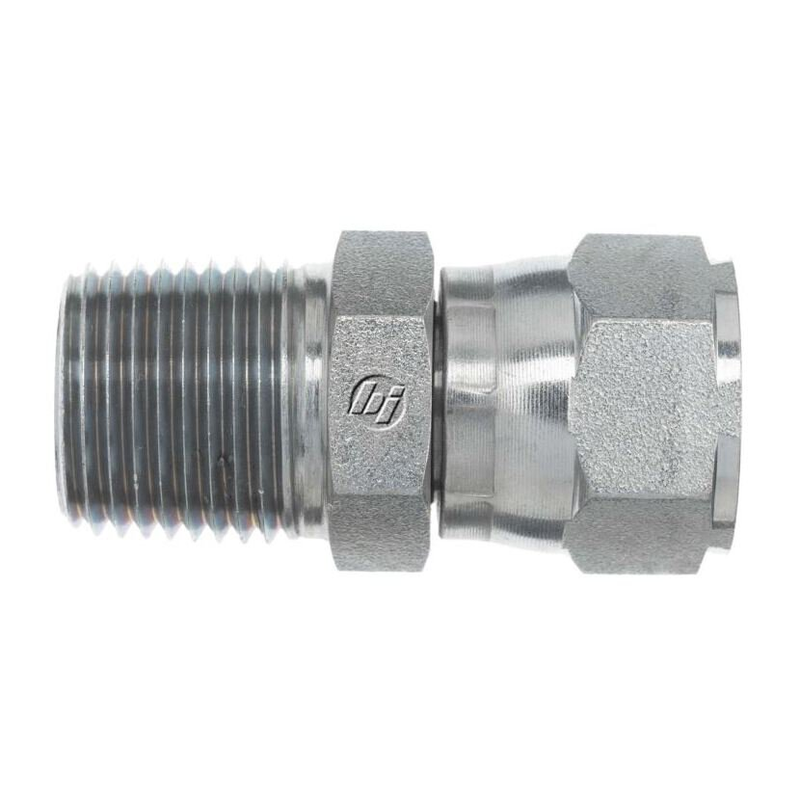

The Brennan 6505-04-04 straight high-pressure fitting is designed for secure and efficient fluid line connections. It features a 1/4" MNPT male thread paired with a 1/4" FJIC 37° swivel female end, ensuring reliable sealing and easy installation. Constructed from durable straight steel and finished with Cr3 plating, it offers enhanced corrosion resistance for long-term performance. Its compact size and precision machining make it ideal for hydraulic, pneumatic, and industrial applications. Engineered according to SAE J476 and SAE J514 standards for consistent, dependable operation.
Fitting Chart- Straight connector: 1/4" MNPT (Male) 1/4" FJIC 37° Swivel (Female)
- Built with steel and coated with Cr3 plating for corrosion resistance
- Meets SAE J476 (NPTF) and SAE J514 (JIC) specifications
- Designed for high-pressure hydraulic and pneumatic systems
- Compact size for easy installation in tight assemblies
- Swivel end allows secure and flexible hose alignment
| Thread B1 Type | Male NPTF |
| Thread B1 Size | 1/4-18 |
| Thread B1 Drill In | 0.281 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Female JIC Swivel 37 Deg Flare |
| Thread B2 Size | 7/16-20 |
| Thread B2 Drill In | 0.172 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 0.625 |
| C Hex 1 In | 0.563 |
| Overall Length L In | 1.54 |
| Overall Length L2 In | 1.2 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.1 |
