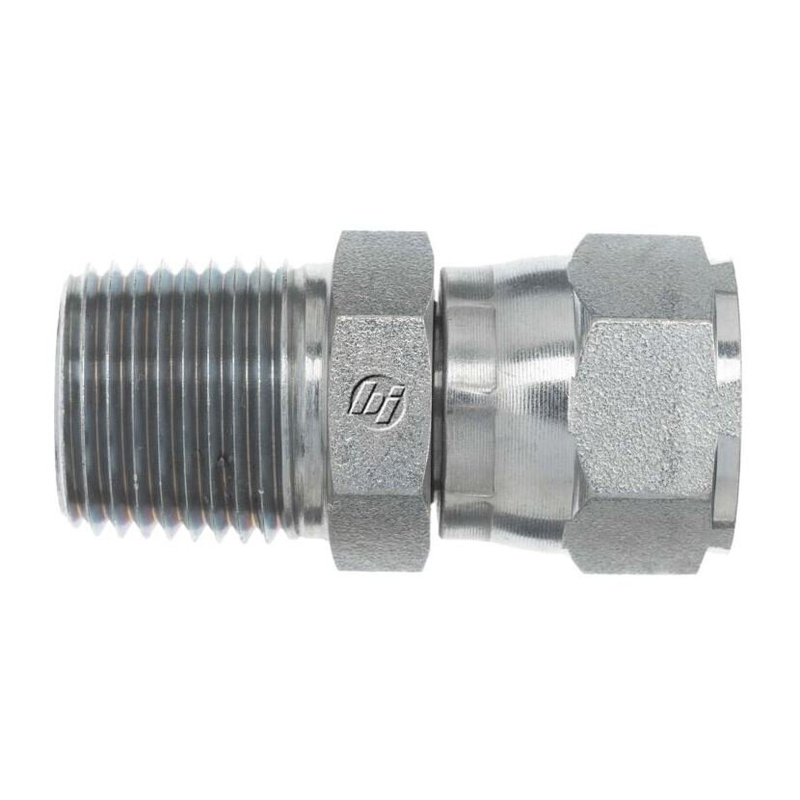

The Brennan 6505-16-16 is a high-pressure straight adapter designed to connect 1" MNPT to 1" FJIC Swivel with a secure, leak-resistant seal. Built from premium straight steel with Cr3 plating, it ensures excellent durability and corrosion protection in demanding hydraulic environments. Its precision-machined NPTF male and JIC 37° flare swivel threads provide reliable performance under high dynamic pressure. With an extended length for better hose routing, this fitting is ideal for hydraulic machinery, industrial equipment, and fluid handling systems.
Fitting Chart- Connects 1" Male NPTF to 1" Female JIC Swivel (37° Flare)
- Precision-engineered to meet SAE J476 and SAE J514 specifications
- Straight design for easy installation and secure system integration
- Constructed from high-strength straight steel with Cr3 plating for corrosion resistance
- Designed for high-pressure hydraulic applications and long service life
- Manufactured by Brennan Industries, a trusted name in hydraulic fittings
| Specification | Details |
| Thread B1 Type | Male NPTF |
| Thread B1 Size | 1-11-1/2 |
| Thread B1 Drill In | 0.938 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Female JIC Swivel 37 Deg Flare |
| Thread B2 Size | 1-5/16-12 |
| Thread B2 Drill In | 0.844 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 1.375 |
| C Hex 1 In | 1.5 |
| Overall Length L In | 2.56 |
| Overall Length L2 In | 1.97 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.576 |
