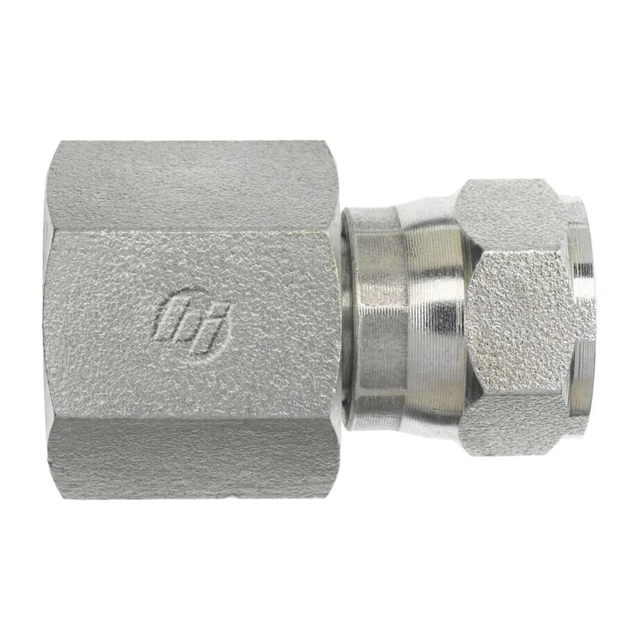

The 6506-04-04 is a precision-engineered straight high-pressure fitting designed to connect 1/4" Female NPTF to 1/4" Female JIC Swivel (37° flare) connections. Manufactured from high-strength straight steel and finished with Cr3 plating, it offers excellent corrosion resistance and long-term durability. Its swivel-end design allows easier installation and alignment without twisting hoses or tubing. Ideal for hydraulic systems, fluid conveyance, industrial machinery, and repair applications. Compact and reliable, this fitting ensures a secure, leak-free seal under demanding operating conditions.
Fitting Chart- Connects 1/4"-18 FNPT to 1/4" JIC swivel (7/16"-20)
- 37° flare swivel end allows easy alignment and installation
- Durable steel construction built for high-pressure applications
- Cr3 plating enhances corrosion protection
- Machined to SAE J476 & J514 standards for leak-proof performance
- Compact straight design fits in tight hydraulic layouts
| Thread B1 Type | Female NPTF |
| Thread B1 Size | 1/4-18 |
| Thread B1 Drill In | 0.281 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Female JIC Swivel 37 Deg Flare |
| Thread B2 Size | 7/16-20 |
| Thread B2 Drill In | 0.172 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 0.75 |
| C Hex 1 In | 0.563 |
| Overall Length L In | 1.52 |
| Overall Length L2 In | 1.17 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.112 |
| California Residents | Prop-65 Warning |
