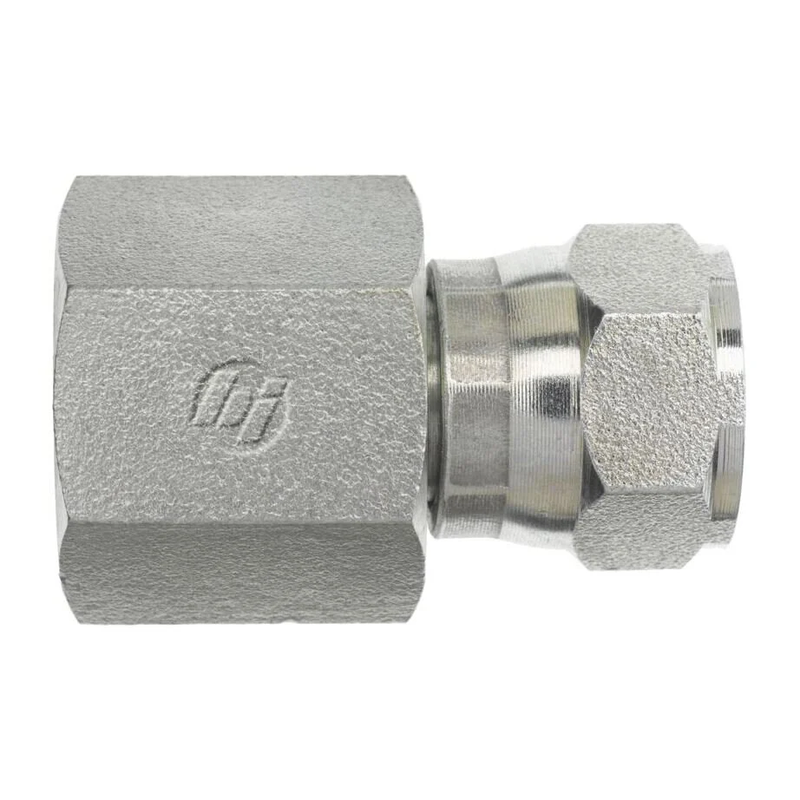

The Brennan 6506-06-06 straight fitting is engineered for secure and leak-free hydraulic connections. Featuring a 3/8" FNPT female end paired with a 3/8" FJIC 37° swivel female flare, it ensures easy installation and precise hose alignment. Constructed from high-quality steel with a Cr3 plating finish, this fitting offers superior corrosion resistance and long-term durability. Designed to meet SAE J476 and SAE J514 standards, it delivers dependable performance in high-pressure systems. Ideal for hydraulic, industrial, and fluid transfer applications where reliability is critical.
Fitting Chart- Straight connector: 3/8" FNPT x 3/8" FJIC 37° Swivel
- Built from durable straight steel for superior strength
- Cr3 plating provides enhanced corrosion protection
- Meets SAE J476 (NPTF) and SAE J514 (JIC) specifications
- Swivel design ensures easier hose routing and alignment
- Suitable for high-pressure hydraulic and industrial systems
| Thread B1 Type | Female NPTF |
| Thread B1 Size | 3/8-18 |
| Thread B1 Drill In | 0.406 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Female JIC Swivel 37 Deg Flare |
| Thread B2 Size | 9/16-18 |
| Thread B2 Drill In | 0.297 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 0.875 |
| C Hex 1 In | 0.688 |
| Overall Length L In | 1.685 |
| Overall Length L2 In | 1.31 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.156 |
