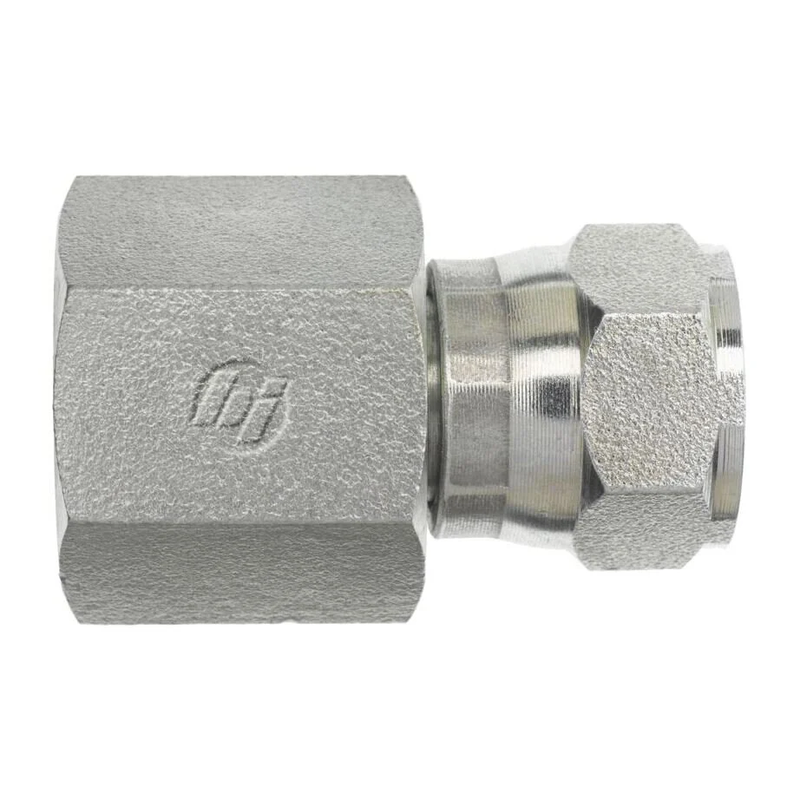

The 1/2" FNPT x 1/2" FJIC Swivel Straight Adapter from Brennan Industries of Texas is a high-pressure hydraulic fitting designed for secure and reliable fluid connections. It features a Female NPTF (1/2-14) inlet paired with a Female JIC Swivel 37° Flare (3/4-16) outlet, built to SAE J476 and SAE J514 standards for leak-free performance. Manufactured from high-quality straight steel and finished with durable Cr3 plating, this fitting offers excellent corrosion resistance. Its straight design and compact dimensions make installation easy in tight hydraulic layouts. Ideal for industrial, hydraulic, and high-pressure fluid system applications.
Fitting Chart- 1/2" Female NPTF to 1/2" Female JIC Swivel straight adapter
- Meets SAE J476 and SAE J514 thread specifications
- Precision-machined for secure, leak-resistant connections
- Cr3 plating enhances corrosion protection and durability
- Strong steel construction ideal for high-pressure hydraulic systems
- Compact design with 1.125" body hex and 0.875" swivel hex for easy installation
| Thread B1 Type | Female NPTF |
| Thread B1 Size | 1/2-14 |
| Thread B1 Drill In | 0.531 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Female JIC Swivel 37 Deg Flare |
| Thread B2 Size | 3/4-16 |
| Thread B2 Drill In | 0.391 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 1.125 |
| C Hex 1 In | 0.875 |
| Overall Length L In | 1.91 |
| Overall Length L2 In | 1.48 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.2985 |
| California Residents | Prop-65 Warning |
