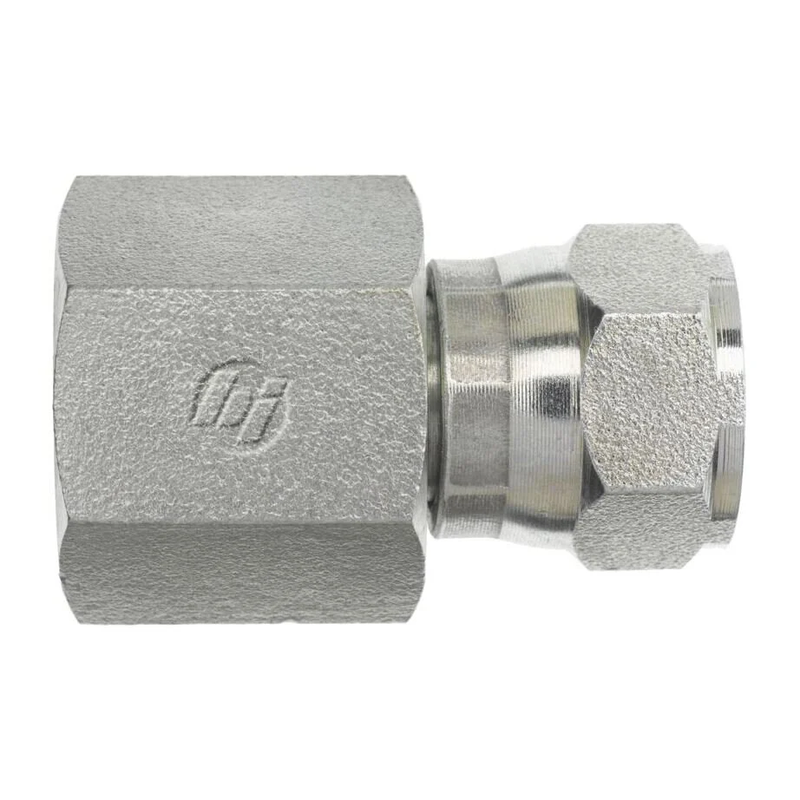

The 6506-16-16 is a premium straight hydraulic adapter designed for robust, leak-free performance in demanding systems. Featuring a 1" Female NPTF connection paired with a 1" Female JIC 37° swivel, this fitting ensures secure, vibration-resistant joints for high-pressure applications. Manufactured from high-strength steel and coated with Cr3 plating, it offers excellent corrosion protection and long service life. Its precision machining meets SAE standards, making it ideal for industrial hydraulic lines, heavy machinery, and fluid handling setups. A reliable solution wherever durability and accuracy are critical.
Fitting Chart- Straight adapter with 1" FNPT x 1" JIC swivel for versatile connection
- Cr3-plated steel body ensures long-lasting corrosion resistance
- Female JIC swivel provides easy installation and tight sealing
- Engineered to meet SAE J476 & J514 industry standards
- Ideal for high-pressure hydraulic and industrial applications
- Precision-forged construction for enhanced durability and performance
| Thread B1 Type | Female NPTF |
| Thread B1 Size | 1-11-1/2 |
| Thread B1 Drill In | 0.938 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Female JIC Swivel 37 Deg Flare |
| Thread B2 Size | 1-5/16-12 |
| Thread B2 Drill In | 0.844 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 1.625 |
| C Hex 1 In | 1.5 |
| Overall Length L In | 2.614 |
| Overall Length L2 In | 2.02 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.84 |
