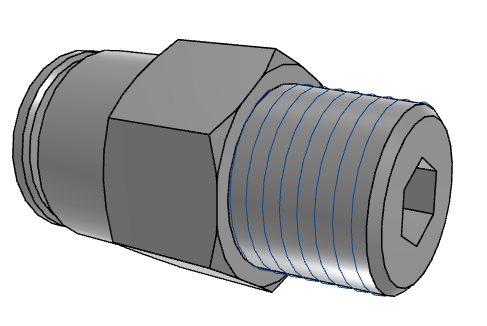

The Camozzi Automation 1/4" Tube x 1/8" MNPT Straight Pneumatic Fitting features a straight male design for secure and easy connections. It combines a 1/8" male NPT thread with a 1/4" push-to-connect fitting, allowing quick and reliable tube installation. Made with durable materials, it operates efficiently under pressures from -0.95 to 10 bar and temperatures between -20C and 80C, suitable for a wide range of pneumatic applications.
- Straight male design with 1/8" NPT male thread
- Push-to-connect fitting for 1/4" imperial tubing
- Internal hex for easy tightening
- Operating pressure range: -0.95 to 10 bar (-13.78 to 145.04 psi)
- Temperature range: -20C to 80C (-4F to 175F)
| Design | Straight - male |
| Box Quantity | 10 |
| Connection Size - Port 1 | 1/8 in |
| Connection Type - Port 1 | NPT Male |
| Connection Size - Port 2 | 1/4 in |
| Connection Type - Port 2 | Push-to-Connect Imperial |
| Internal Hex | Yes |
| Operating Pressure (Metric) | -0.95 to 10 bar |
| Operating Pressure (Standard) | -13.78 to 145.04 psi |
| Operating Temperature (C) | -20 to 80C |
| Operating Temperature (F) | -4 to 175F |
| Size | Standard |
