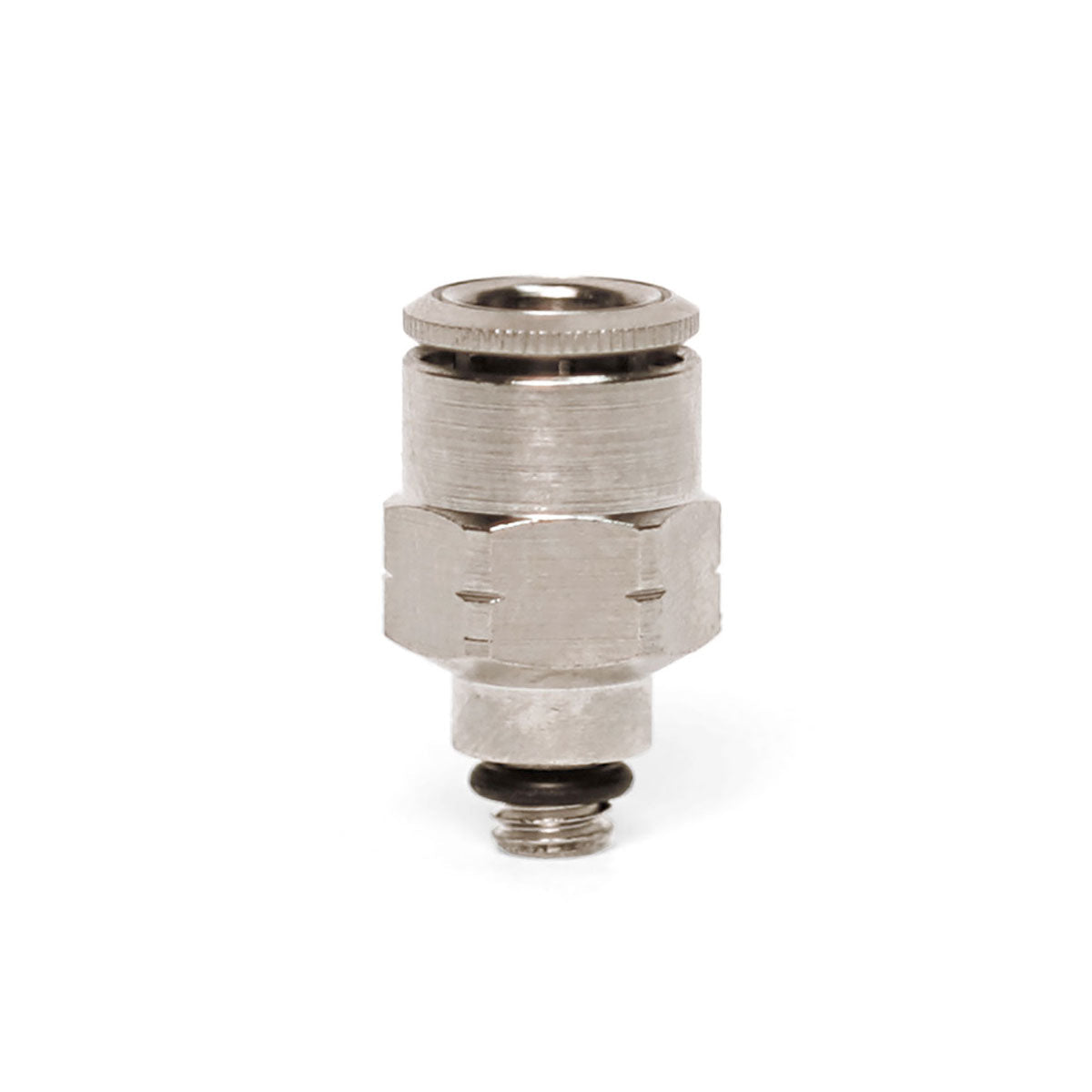

This ultra-miniature push-in straight fitting is crafted to connect a 1/8" OD pneumatic tube directly into a fine 10-32 UNF male thread port. Perfect for high-density micro-automation panels, it features a built-in elastomer face seal that provides a secure, leak-free seal without requiring thread sealant tape.
The rugged nickel-plated brass architecture ensures a secure connection, making it ideal for medical, laboratory, and micro-robotic manifolds.
- Fine-threaded 10-32 UNF male interface features an integrated O-ring for immediate air-tight port sealing
- Instant push-in receptor accepts standard 1/8-inch OD polymer hoses with zero assembly tools
- Precision-forged all-metal nickel-plated brass core prevents rust, scale build-up, and chemical degradation
- High-density Buna-N elastomer seal rings retain complete pneumatic integrity during temperature swings
- Streamlined low-profile external housing maximizes tool workspace during complex installation steps
- Enlarged direct flow chamber structure permits maximum cylinder stroke speeds without air throttling
| Item ID | 6512-02-32 |
| Product Type | Push-In Male Straight Stud Connector |
| Connections | 1/8" Tube X 10/32" UNF |
| Supplier Name | Camozzi Automation, Inc. |
| Application | Micro-Pneumatic Manifolds and Laboratory Pilot Lines |
| Kit Function | Linear Leak-Free Tubing Connection |
| Compatibility | Standard 1/8" OD Polymer Tubing |
| Installation Type | Threaded Male and Push-In Connection |
| Compatible Media | Compressed Air and Inert Industrial Gases |
| Material | All-Metal Nickel-Plated Brass Shell with Elastomer Face Seal |
| Pressure Rating | Max 232 PSI / Vacuum up to 28" Hg |
