This heavy-duty 90-degree swivel elbow fitting provides a dependable, leak-free connection for adaptive fluid line tracking in high-capacity compressed air distribution layouts. Built with a high-strength polymer upper body and a precision-machined heavy-duty threaded metallic shank, it handles extreme lateral strain and high operational pressures without joint degradation. The integrated push-in locking mechanics allow for instant, tool-free tube insertion and permanent retention.
The integrated 360-degree swivel interface allows for perfect directional orientation and alignment during assembly, simplifying complex routing pathways. The right-angle internal bore is aerodynamically swept to eliminate restrictive air turbulence, avoiding performance-limiting pressure drops. This durable elbow fitting reduces installation labor, eliminates tube kinking, and ensures a prolonged, maintenance-free service life.
- Tough composite-to-metal design delivers superior structural durability and resists cracking under heavy continuous vibration.
- Smooth right-angle interior profile eliminates restrictive fluid turbulence, ensuring maximum volumetric efficiency for pneumatic actuators.
- High-tensile gripping ring secures flexible lines firmly, preventing dangerous tube slip-outs under sudden pressure shocks.
- Full 360-degree swivel capability allows optimal angle adjustment, eliminating severe tube stress and kinking damage.
- Pre-coated male threads speed up structural assembly, ensuring a reliable leak-proof seal without extra tape labor.
- Advanced internal sealing rings maintain full pressure containment, minimizing energy losses and enhancing plant safety.
- Compact right-angle architecture enables neat low-profile plumbing configurations, maximizing available work envelope space.

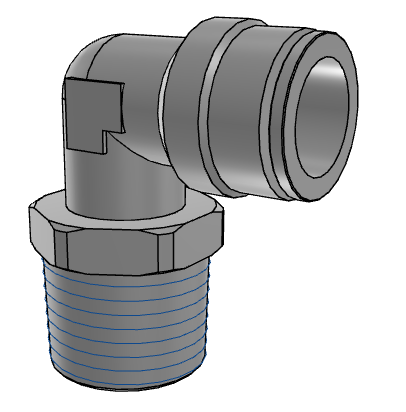

| Part No | 6520-08-08 |
| Product Type | 1/2"" TUBE X 1/2"" MNPT SWVL, ELBOW 90 |
| Supplier Name | Camozzi Automation, Inc. |
| Application | High-capacity power actuator connections and angular line distribution in heavy machinery |
| Function | Right-angle adaptation of a female 1/2-inch NPT port to 1/2-inch flexible tubing |
| Compatibility | Standard fractional 1/2-inch outside diameter polymer lines and matching female threaded ports |
| Installation Type | Threaded male NPT base with an instantaneous push-in opposite port |
| Compatible Media | Filtered compressed air, low-pressure non-corrosive system gases, and vacuum loops |
| Material | Premium nickel-plated brass threaded base, technical polymer elbow body, and NBR seals |
| Operating Condition | Demanding factory production cells subject to continuous operational stress and multi-axis movement |
| Performance Feature | Full 360-degree rotational positioning adjustment before final line locking with zero leak leakage rates |
