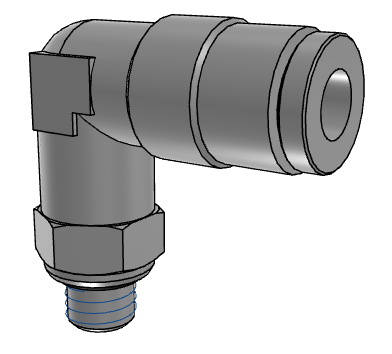

6522-53-32

This specialized 90-degree branch or dual-inline swiveling fitting is precision-engineered to enable flexible multi-branch plumbing arrays inside ultra-compact machine configurations. Fabricated with an adaptive technopolymer body layout and a robust threaded male stud base, it tolerates extreme cyclic vibrations and lateral line tension safely. The built-in quick connect locks provide automated, tool-free line insertion with positive long-term retention.

The internal fluid paths are balanced to ensure uniform velocity during directional transitions, effectively mitigating internal turbulence and localized circuit pressure drop. Its multi-port swiveling head allows optimal alignment flexibility, preventing dangerous line kinking and physical line wear under machine motion. This high-reliability component significantly cuts field plumbing labor and increases active layout efficiency.

• Toughened composite-to-metal housing layout guarantees exceptional mechanical resistance against external side-loading and operational vibrations.
• Smooth internal geometries eliminate restrictive fluid turbulence, ensuring maximum volumetric efficiency for pneumatic circuits.
• Stainless steel grab ring ensures positive tube retention, eliminating dangerous pull-out failures under high pressure.
• Symmetrical branching layout allows flexible routing options, optimizing line layout profiles inside compact machinery frames.
• Pre-applied thread sealant or precision face seals accelerate mounting, preventing over-tightening damage during initial installation.
• High-integrity sealing configuration blocks airborne contaminants, securing consistent operational parameters for sensitive downstream equipment.
• Miniature space-saving envelope allows closer component grouping, maximizing productivity per square inch of control panel.
