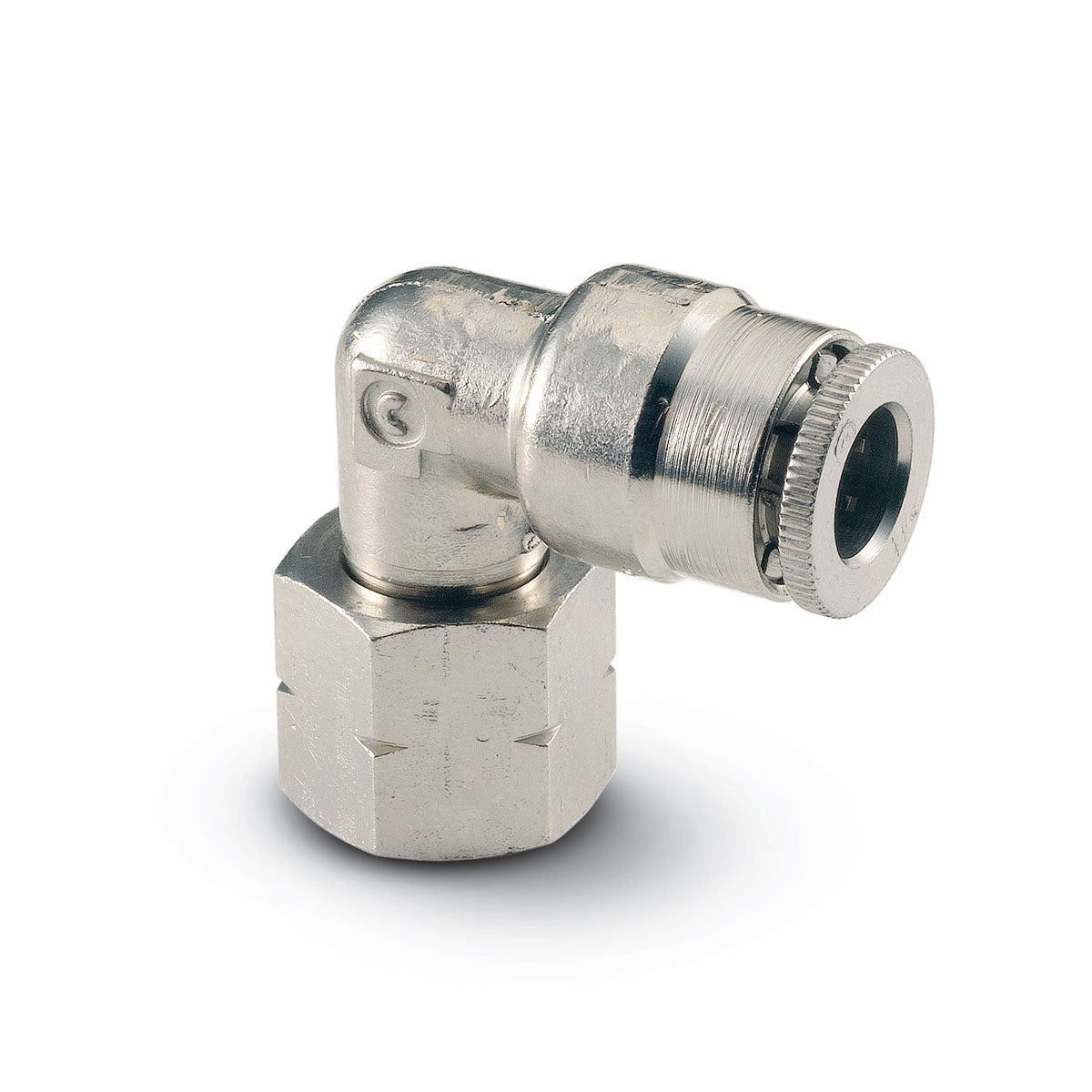

This intermediate right-angle female connector is expertly crafted to adapt 3/8" OD pneumatic tubing directly into a 1/4" Female NPT structural assembly block. Built entirely from precision-machined brass with an industrial-grade nickel finish, it provides superior wear protection against caustic cleaning agents and continuous ambient shop heat.
The internal reusable grip collet mechanism supports effortless tube replacement, ensuring reliable connection routing and consistent pneumatic performance in demanding industrial applications.
- Secure push-in mechanism accommodates a 3/8-inch tube outer diameter with an absolute vacuum-tight mechanical grip
- Precision-machined 1/4-inch Female NPT threaded base guarantees complete sealing stability under high loads
- High-grade nickel-plated brass architecture offers exceptional structural durability across harsh industries
- Flexible Buna-N rubber internal packing system keeps connection pathways stable against vibrations
- Right-angle profile enables compact installation paths around tight corner machine enclosures
- Optimized internal passage design allows for stable volumetric output without creating air constriction
| Item ID | 6523-06-04 |
| Product Type | Push-In Female 90° Elbow Fitting |
| Connections | 3/8" Tube X 1/4" FNPT |
| Supplier Name | Camozzi Automation, Inc. |
| Application | Distribution Manifold Pneumatic Supply Lines |
| Kit Function | 90-Degree Fixed Directional Path Routing |
| Compatibility | Standard 3/8" OD Polymer Tubing |
| Installation Type | Threaded Female and Push-In Connection |
| Compatible Media | Compressed Air and Inert Industrial Gases |
| Material | All-Metal Nickel-Plated Brass Shell |
| Pressure Rating | Max 232 PSI / Vacuum up to 28" Hg |
