6540-04-00

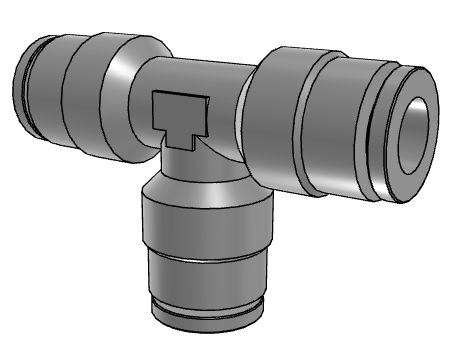

This heavy-duty tube union tee fitting is engineered to provide efficient three-way fluid distribution within high-pressure pneumatic networks. Featuring a robust, impact-resistant body layout, it handles intense mechanical stresses and continuous pressure fluctuations without structural degradation. The integrated push-in connection mechanics ensure rapid, uniform tube insertion and secure retention.

The balanced symmetric profile allows for clean, unhindered division or convergence of air streams, maximizing downstream pneumatic actuator power. Its space-efficient configuration is ideal for tight routing layouts within complex machinery frames. This reliable union tee reduces maintenance requirements and ensures long, leak-free operational performance.

• Reinforced structural construction resists external stress cracking and withstands high physical vibrations on heavy manufacturing machinery.
• Symmetric internal fluid channels split air streams evenly, avoiding performance-limiting pressure drops or erratic volumetric flow.
• Premium gripping rings lock lines firmly into position, eliminating blowouts under severe, high-pressure dynamic surges.
• Multi-directional branch layout facilitates flexible three-way fluid distribution, allowing streamlined routing profiles in intricate networks.
• Simple push-to-connect mechanism facilitates instantaneous, tool-less line installation, cutting manual plumbing labor hours significantly.
• Positive internal sealing protects system pressure against environmental contamination, keeping operating parameters safe and predictable.
• Low-profile construction fits easily into ultra-dense pneumatic control panels, optimizing valuable machine real estate efficiently.
