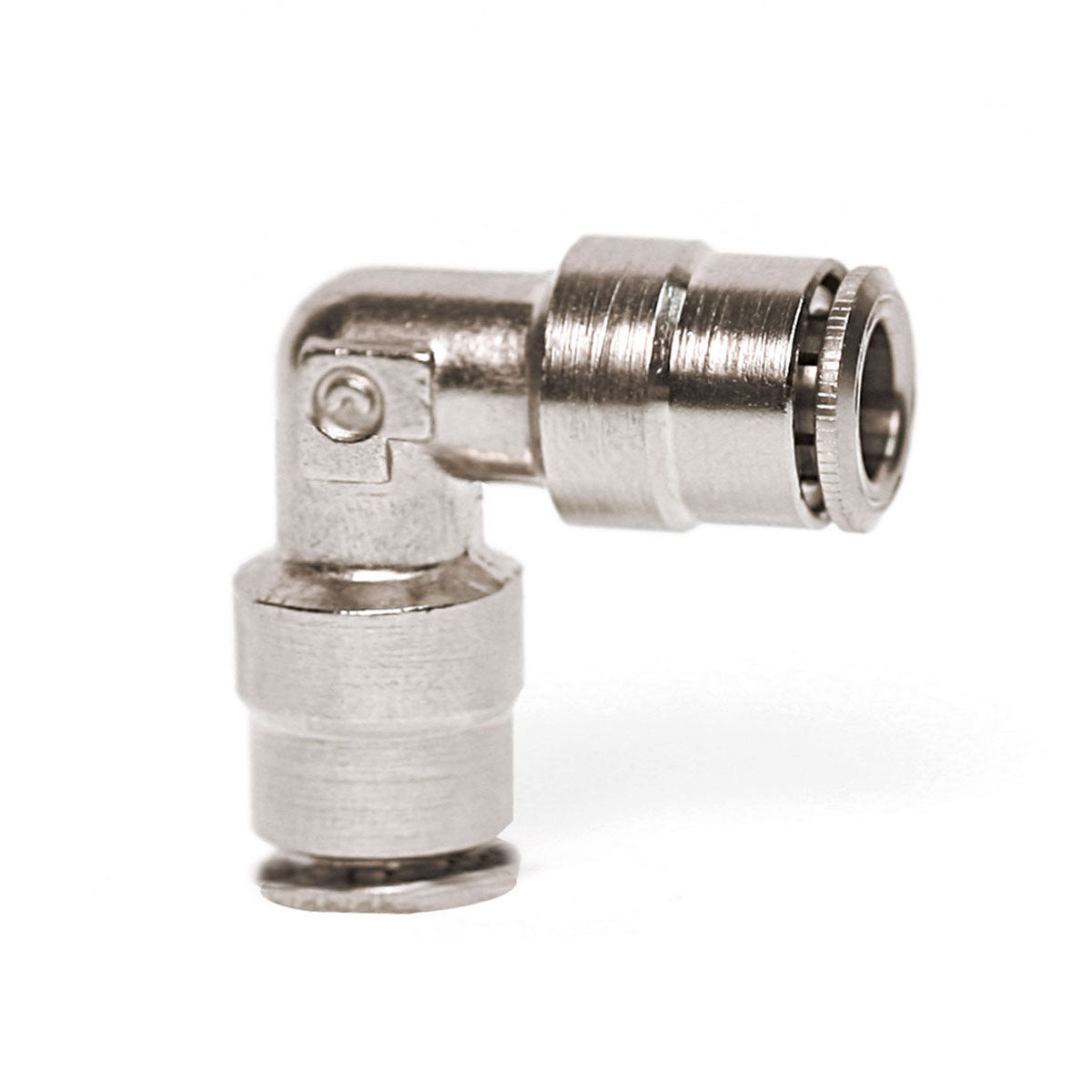

6550-02-00 1/8 Inch Tube Union 90-Degree Elbow is crafted for secure right-angle line splicing and efficient fluid path redirection in space-restricted machinery panels. Manufactured by Camozzi Automation, Inc., the union provides dependable tube-to-tube cornering with rugged mechanical resistance against continuous vibration fatigue. Its fixed 90-degree bend layout eliminates the kinking vulnerabilities typical of flexible polymer hoses, improving routing design flexibility, air management efficiency, and link durability in tight automation frames.
The close-cropped elbow profile allows convenient installation in mini control systems, valve clusters, and narrow structural pathways. Suitable for industrial automation networks, this component prevents structural line kinks.
- Precision-forged inline elbow ensures seamless right-angle routing performance safely
- Heavy-wall metal architecture supports permanent circuit splice reliability efficiently
- Dual 1/8 inch push-in tube ports allow instantaneous line connection procedures cleanly
- Internal elastic seal rings improve complete vacuum pathway locking securely
- Low-friction geometric layout permits simple close-quarters tool tracking easily
| Item ID | 6550-02-00 |
| Product Type | Pneumatic Elbow Union |
| Connections | 1/8" Tube Union 90° |
| Supplier Name | Camozzi Automation, Inc. |
| Application | Compact Line Bending Connections |
| Kit Function | 90-Degree Directional Routing |
| Compatibility | Pneumatic Automation Systems |
| Installation Type | Push-In Tube Connection |
| Compatible Media | Compressed Air Systems |
| Valve Type | Equal Elbow Connector |
| Material | Industrial-Grade Metal Body |
| Pressure Rating | Max 232 PSI Operation |
