6550-06-00

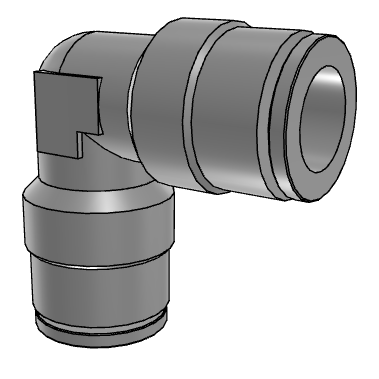

This premium 90-degree tube union elbow is designed to change fluid flow direction within compressed air systems smoothly while conserving space. Constructed from high-strength materials, it offers exceptional durability against torque, bending stresses, and high line pressures. The integrated push-in locking mechanics allow for instant, secure tube connections without the need for specialized tooling.

The engineered right-angle bend minimizes internal turbulence, preventing performance-limiting pressure drops through sharp directional changes. Its compact design is ideal for routing lines around obstacles and within tight machine enclosures. This robust elbow union enhances layout efficiency and ensures a long, leak-free operational life.

• Rugged structural body resists physical warping and tolerates heavy mechanical stress in active automation environments.
• Swept internal elbow radius minimizes fluid resistance, maintaining high downstream pneumatic tool pressure and system performance.
• Internal steel locking segments grip lines tightly, eliminating risky tube blowouts during heavy dynamic pressure fluctuations.
• Fixed right-angle configuration allows neat routing around tight corners, eliminating kinking risks in flexible tubing lines.
• Instant push-to-connect interface simplifies installation procedures, allowing technicians to complete system routing with minimal effort.
• High-performance sealing ring isolates fluid pressure completely, maintaining clean, safe, and efficient factory equipment operation.
• Compact envelope allows high-density line placement inside crowded control enclosures, boosting structural layout productivity.
