This precision-engineered 90-degree tube union elbow is designed to enable seamless, low-resistance directional changes within compact pneumatic circuits. Constructed from high-strength technical polymers and rugged internal locking components, it withstands constant pressure cycles and external mechanical vibrations. The advanced push-in interface provides an instantaneous, airtight connection without the need for additional assembly tooling.
The internal flow channel is aerodynamically optimized to minimize air turbulence, preventing localized pressure drops and ensuring maximum actuator efficiency. Its miniature profile is perfect for routing flexible lines around tight corners and within dense machine enclosures. This durable fitting reduces assembly labor, eliminates line kinking, and delivers an exceptionally long, leak-free service life.
- Impact-resistant composite body ensures outstanding structural durability and long-term fatigue protection in demanding factory automation settings.
- Smooth right-angle interior geometry eliminates restrictive air turbulence to preserve optimal downstream pressure and operational output.
- High-tensile stainless steel grab rings anchor lines permanently, preventing accidental tube detachment during intense dynamic surges.
- Uniform 90-degree orientation provides precise, neat line routing around hard corners while preventing performance-limiting tube kinking.
- Tool-less push-to-connect interface simplifies installation workflows, dramatically cutting manual plumbing time and labor costs during machine assembly.
- Advanced internal sealing rings block airborne industrial debris, maintaining total system pressure integrity and workplace safety levels.
- Space-saving miniature footprint allows hyper-dense component grouping inside tightly configured control panels to maximize layout productivity.

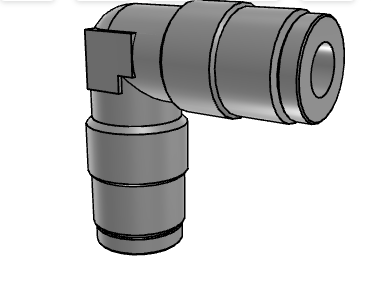

| Part No | 6550-53-00 |
| Product Type | 5/32" TUBE UNION, ELBOW 90 |
| Supplier Name | Camozzi Automation, Inc. |
| Application | Directional air routing and corner transitions in high-density pneumatic circuits |
| Function | Inline 90-degree coupling of two fractional 5/32-inch flexible tubes |
| Compatibility | Standard outside diameter fractional polymer lines including polyurethane, nylon, and polyethylene |
| Installation Type | Dual quick-connect push-in ports for immediate tool-less tube attachment |
| Compatible Media | Filtered compressed air, industrial vacuum pressures, and non-corrosive system gases |
| Material | Premium technical polymer body housing combined with structural stainless steel gripping claws |
| Operating Condition | Industrial manufacturing environments requiring high vibration immunity and steady thermal performance |
| Performance Feature | Instantaneous connection with high mechanical pull-out resistance and zero-leak sealing capability |
