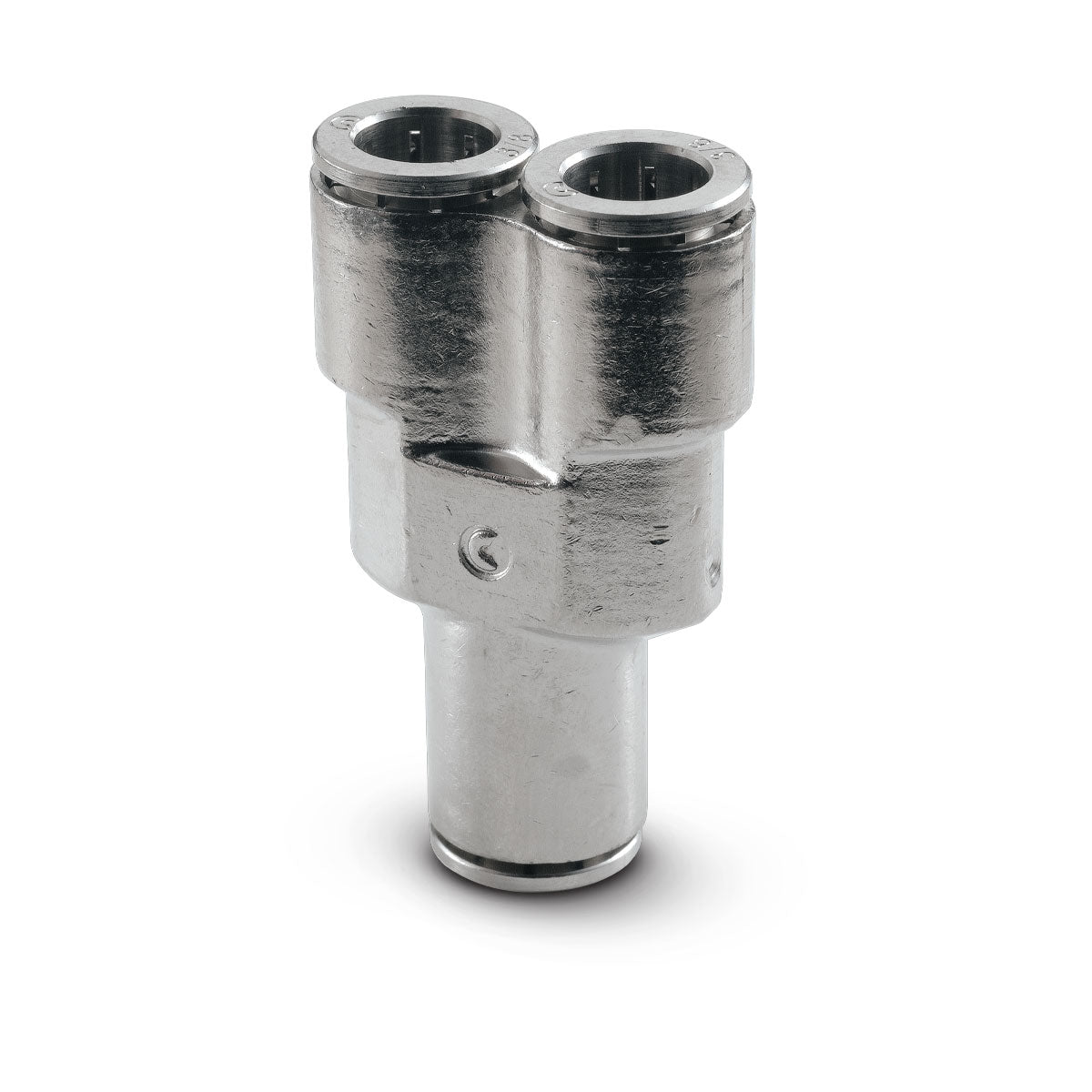

6560-02-00 1/8 Inch Tube Union "Y" Fitting is designed for secure low-turbulence line branching and efficient airflow splitting in high-precision control devices. Manufactured by Camozzi Automation, Inc., the component provides dependable fluid path forking along a streamlined directional angle to reduce air friction. Its angled Y-shaped geometry preserves pressure velocity better than traditional square tees, improving circuit adaptation speed, distribution optimization, and layout consistency in dense medical equipment enclosures.
The parallel flow architecture allows convenient installation in miniature manifold systems, pilot grids, and compact multi-axis setups. Suitable for industrial automation lines, this component guarantees absolute sealing integrity.
- Streamlined Y-junction design ensures minimized flow friction performance safely
- Robust all-metal body casing supports long-term structural link reliability efficiently
- 1/8 inch push-in ports allow immediate multi-tube pairing procedures cleanly
- Premium-grade internal packing rings improve airtight path isolation securely
- Low-profile external design permits neat placement inside compact wire trays easily
| Item ID | 6560-02-00 |
| Product Type | Pneumatic Y Union |
| Connections | 1/8" Tube Union Y |
| Supplier Name | Camozzi Automation, Inc. |
| Application | Low-Turbulence Fluid Branching |
| Kit Function | 3-Way Directional Y-Splitting |
| Compatibility | Pneumatic Automation Systems |
| Installation Type | Push-In Tube Connection |
| Compatible Media | Compressed Air Systems |
| Valve Type | Equal Y Connector |
| Material | Industrial-Grade Metal Body |
| Pressure Rating | Max 232 PSI Operation |
