This premium 1/4-inch union 'Y' fitting is designed to split or converge fluid pathways cleanly at an optimized angle within compressed air networks. Manufactured from impact-proof technical polymers and high-tensile stainless steel claw rings, it guarantees positive line retention under sharp pressure cycles. The integrated dual push-in connection mechanics provide automated, tool-free line assembly with zero risk of structural leakage.
The balanced 'Y' profile minimizes directional resistance, preventing localized fluid drag or performance-limiting pressure drops into downstream sub-circuits. Its streamlined envelope allows for close parallel tracking in dense multi-line automation panels where space is highly constrained. This reliable union 'Y' simplifies layout complexity, improves system response symmetry, and delivers an extensive maintenance-free operating life.
- High-strength composite body defends against physical impacts and environmental stress cracking on high-speed production machinery.
- Balanced dual-path channel splits single supply lines evenly, preventing uneven actuator forces or localized pressure drops.
- Premium stainless steel lock rings grip lines with exceptional force, eliminating blowouts under high dynamic shock surges.
- Symmetrical parallel geometry allows streamlined routing paths, optimizing line organization in tight machinery channels.
- One-step push-in connection design permits instant line integration, saving significant manual labor hours during field setups.
- High-grade internal gaskets isolate pressures securely from atmosphere, keeping automation system parameters predictable and safe.
- Low-profile layout slides easily into ultra-dense pneumatic enclosures, capitalizing on restricted mechanical real estate efficiently.

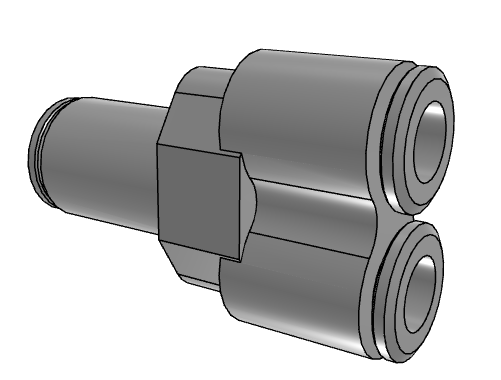

| Part No | 6560-04-00 |
| Product Type | 1/4" UNION "Y" |
| Supplier Name | Camozzi Automation, Inc. |
| Application | Dual-branch circuit distribution and parallel line plumbing in fractional automation tracks |
| Function | Two-way symmetrical distribution of a single 1/4-inch pneumatic supply line |
| Compatibility | Calibrated fractional 1/4-inch outside diameter flexible tubing types like polyamide and polyurethane |
| Installation Type | Triple push-in ports for immediate tool-less structural tube branching |
| Compatible Media | Filtered compressed air, low-pressure non-hazardous system gases, and vacuum loops |
| Material | Heavy-duty technopolymer housing combined with stainless steel gripping components and NBR seals |
| Operating Condition | High-throughput automated lines exposed to constant mechanical movement and multi-axis vibrations |
| Performance Feature | Unrestricted divided flow paths across all ports paired with absolute leak-free containment |
