This heavy-duty tube union connector is engineered to facilitate secure, inline bridging between identical fractional lines within high-pressure pneumatic systems. Manufactured with an impact-resistant composite body and high-grade internal locking mechanisms, it withstands constant pressure spikes and continuous structural vibration. The advanced push-in system allows for quick, tool-free line connections while maintaining full flow integrity across the joint.
The straight, full-bore internal design provides an optimal flow coefficient, preventing localized air turbulence or performance-limiting pressure drops. Its clean, streamlined profile is ideal for organizing multi-line routing arrays within crowded control cabinets and machine frames. This resilient union connector minimizes layout complexity, cuts manual maintenance downtime, and provides long-term operational reliability.
- Heavy-duty technopolymer construction resists fatigue and cracking under continuous exposure to harsh factory operating environments.
- Straight high-flow internal path geometry maximizes volumetric displacement, optimizing attached pneumatic actuator performance parameters.
- Premium gripping rings lock lines firmly into position, eliminating blowouts under severe, high-pressure dynamic surges.
- Direct inline configuration safely bridges fractional lines smoothly, optimizing layout efficiency in multi-stage networks.
- Simple push-in engineering removes the need for specialized assembly tools, accelerating complex machinery wiring.
- High-performance sealing ring isolates fluid pressure completely, maintaining clean, safe, and efficient factory equipment operation.
- Light, compact design minimizes physical load on flexible line arrays, enhancing overall equipment layout longevity.

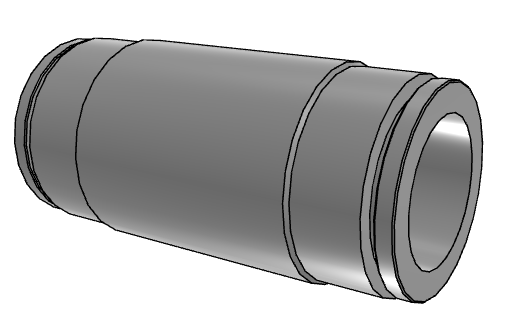

| Part No | 6580-08-00 |
| Product Type | 1/2" TUBE UNION STRAIGHT |
| Supplier Name | Camozzi Automation, Inc. |
| Application | Symmetrical inline tube coupling and line extension in large-diameter fractional pneumatic circuits |
| Function | Straight connection and coupling of two 1/2-inch outside diameter flexible tubes |
| Compatibility | Calibrated polyurethane, polyamide, and polyethylene flexible fractional tubing types |
| Installation Type | Dual push-in connections for instantaneous tool-less assembly and line extension |
| Compatible Media | Filtered compressed air, industrial vacuum pressures, and non-corrosive system gases |
| Material | Technopolymer body reinforced with stainless steel gripping claws and robust synthetic seals |
| Operating Condition | General factory automation equipment subject to routine mechanical movement and vibration |
| Performance Feature | Instantaneous connection with high-tensile tube retention and zero leak rates under load |
