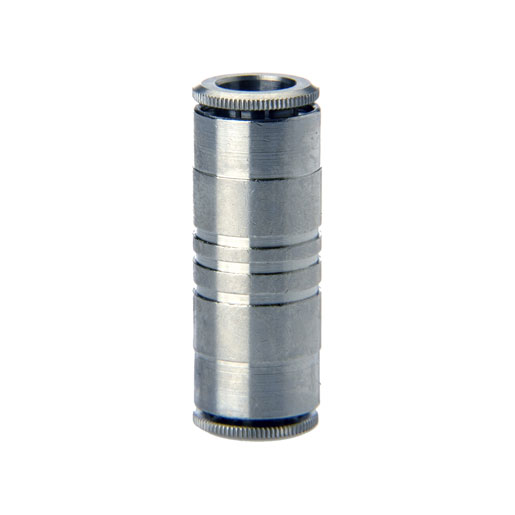

This high-performance miniature tube union is engineered to provide an immediate, leak-free straight connection between two flexible 5/32-inch pneumatic lines. Constructed from premium, impact-resistant technopolymers and precise internal grabbing claws, it handles continuous pressure spikes and external mechanical stress effectively. The push-in connection architecture ensures rapid, uniform tube insertion and positive structural sealing without tools.
Ideal for high-density pneumatic logic circuits and medical automation systems, this fitting significantly reduces routing layout complexity. It maintains consistent fluid velocities through the joint, preventing localized pressure drops and ensuring stable system pressure parameters. Its durable construction guarantees a long operational life, delivering dependable maintenance-free service in demanding automation environments.
- Premium alloy composition offers exceptional corrosion defense, ensuring structural integrity when exposed to industrial fluids.
- Straight full-bore internal channel allows completely unrestricted air velocity to optimize pneumatic cylinder response times.
- High-reliability internal check mechanics provide positive tube retention, eliminating dangerous pull-out failures under pressure.
- Symmetrical inline configuration safely bridges fractional lines smoothly, optimizing layout efficiency in multi-stage networks.
- Simple push-in engineering removes the need for specialized assembly tools, accelerating complex machinery wiring.
- High-performance sealing ring isolates fluid pressure completely, maintaining clean, safe, and efficient factory equipment operation.
- Miniature space-saving envelope allows closer component grouping, maximizing productivity per square inch of control panel.

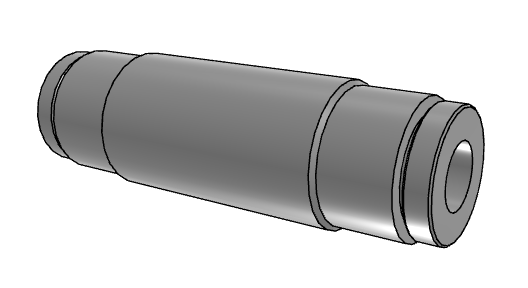

| Part No | 6580-53-00 |
| Product Type | 5/32" TUBE UNION STRAIGHT |
| Supplier Name | Camozzi Automation, Inc. |
| Application | Miniature line extension and inline tube coupling in pneumatic control logic systems |
| Function | Straight inline connection of two fractional 5/32-inch outside diameter flexible tubes |
| Compatibility | Standard outside diameter fractional polymer lines including polyurethane, nylon, and polyethylene |
| Installation Type | Dual push-in quick ports for tool-free structural line attachment and extension |
| Compatible Media | Compressed air, technical process gases, and industrial vacuum circuits |
| Material | Technopolymer body reinforced with stainless steel gripping claws and high-grade nitrile seals |
| Operating Condition | High-speed automation applications subject to continuous cyclic motion and tight space constraints |
| Performance Feature | Toolless coupling capability with high mechanical resistance to lateral pulling forces and zero leaks |
