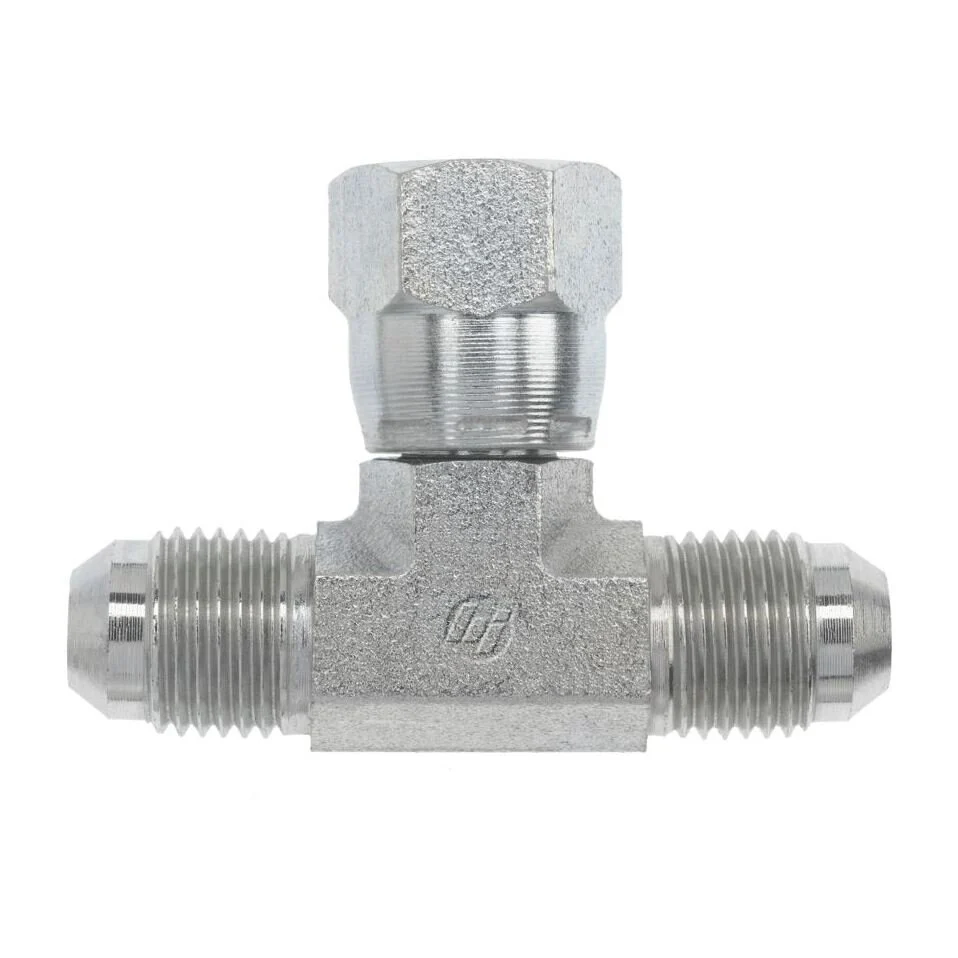

The 6600-08-08-08-FG is a high-pressure hydraulic JIC Tee designed for reliable fluid transfer in demanding industrial systems. With two male JIC 37° flare ends and one female JIC swivel connection-all 3/4-16 thread size-it provides a secure, leak-free connection compatible with SAE J514 standards. Manufactured from high-strength steel and Cr3 plated, this fitting delivers excellent durability and corrosion resistance. Its compact tee design allows flexible routing of hydraulic lines in tight or complex layouts. Ideal for heavy machinery, mobile equipment, and high-pressure fluid power applications.
Fitting Chart- High-pressure 37° JIC flare tee fitting (Male-Male-Female)
- All ports: 3/4-16 JIC threads for universal compatibility
- Female JIC swivel for easy installation without twisting hoses
- Precision-machined steel body for long-term performance
- Corrosion-resistant Cr3 plating
- Complies with SAE J514 hydraulic fitting standards
| Thread B1 Type | Male JIC SAE 37 Flare |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill | 0.391 in |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male JIC SAE 37 Flare |
| Thread B2 Size | 3/4-16 |
| Thread B2 Drill | 0.391 in |
| Thread B2 Specification | SAE J514 |
| Thread 3 Type | Female JIC Swivel 37 Flare |
| Thread 3 Size | 3/4-16 |
| Thread 3 Drill | 0.391 in |
| Thread 3 Specification | SAE J514 |
| Body Hex | 0.75 in |
| C Hex | 0.875 in |
| Overall Length (L) | 1.38 in |
| Overall Length (L2) | 0.95 in |
| Centerline Length (M) | 1.25 in |
| Centerline Length (M2) | 1.25 in |
| Shape | Tee |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight | 0.278 lbs |
| Regulatory Notice | California Prop-65 Warning |
