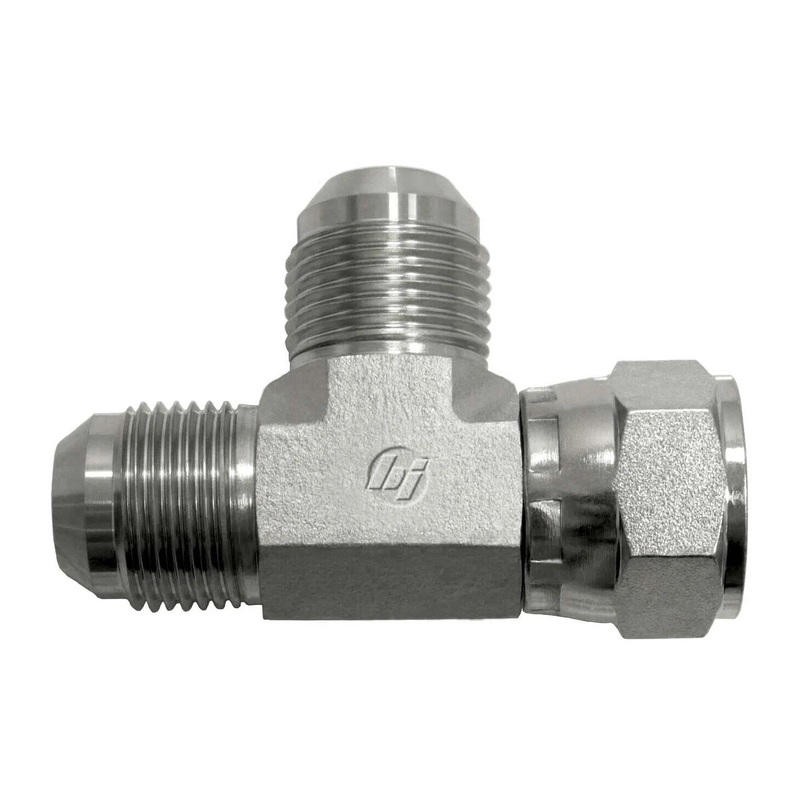

The Brennan Industries 6602-06-06-06-FG is a high-pressure Tee hydraulic fitting designed to connect 3/8" Male JIC (37° flare), 3/8" Female JIC swivel (37° flare), and 3/8" Male JIC (37° flare) ports in one compact assembly. Forged from strong steel and coated with Cr3 plating, this tee provides excellent corrosion resistance and long-lasting durability. Its design enables efficient branching of hydraulic lines while maintaining leak-free performance under pressure. Precision threads and swivel connections allow easy installation and reliable sealing. Ideal for industrial machinery, fluid transfer systems, and high-pressure hydraulic maintenance.
Fitting Chart- Tee configuration allows splitting or joining hydraulic lines in a compact design
- Forged steel construction ensures high strength and long-term durability
- Swivel connection simplifies alignment and helps prevent leaks
- Cr3 plating protects against corrosion and wear in harsh environments
- Suitable for high-pressure hydraulic systems and industrial equipment
- Precision-engineered threads provide a secure, vibration-resistant seal
| Specification | Details |
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 9/16-18 |
| Thread B1 Drill In | 0.297 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Female JIC Swivel 37 Deg Flare |
| Thread B2 Size | 9/16-18 |
| Thread B2 Drill In | 0.297 |
| Thread B2 Specification | SAE J514 |
| Thread 3 Type | Male JIC SAE 37 Degree Flare |
| Thread 3 Size | 9/16-18 |
| Thread 3 Drill In | 0.297 |
| Thread 3 Specification | SAE J514 |
| Body Hex In | 0.562 |
| C Hex 1 In | 0.687 |
| Overall Length L In | 1.06 |
| Centerline Length M In | 1.06 |
| Centerline Length M2 In | 1.25 |
| Centerline Length M3 In | 0.875 |
| Shape | Tee |
| Body Material | Steel |
| Raw Material Type | Steel Forgin |
| Plating | Cr3 |
| Weight Lbs | 0.142 |
