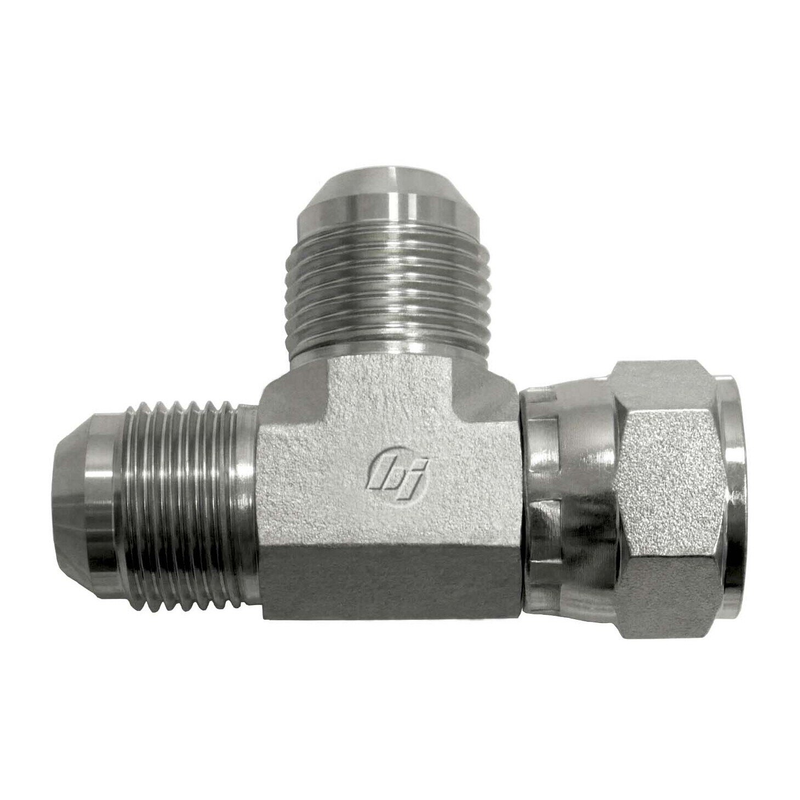

The Brennan 6602-08-08-08-FG is a high-pressure hydraulic tee fitting designed for reliable and versatile fluid routing. It features a 1/2" MJIC male 37° flare (3/4-16 thread) x 1/2" FJIC female swivel (3/4-16 thread) x 1/2" MJIC male (3/4-16 thread) configuration, ensuring secure and leak-free connections. Manufactured from durable steel forging with Cr3 plating, this tee provides excellent corrosion resistance and long service life in demanding hydraulic environments. Its compact tee-body design enables smooth directional flow changes, ideal for industrial, mobile, and high-performance hydraulic systems.
Fitting Chart- Tee fitting connects 1/2" MJIC male (3/4-16) x 1/2" FJIC female swivel (3/4-16) x 1/2" MJIC male (3/4-16)
- Built from high-strength forged steel with protective Cr3 plating
- Meets SAE J514 standards for dependable, leak-free hydraulic sealing
- Designed for high-pressure hydraulic applications
- Compact tee configuration ensures efficient fluid routing in tight spaces
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill In | 0.391 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Female JIC Swivel 37 Deg Flare |
| Thread B2 Size | 3/4-16 |
| Thread B2 Drill In | 0.391 |
| Thread B2 Specification | SAE J514 |
| Thread 3 Type | Male JIC SAE 37 Degree Flare |
| Thread 3 Size | 3/4-16 |
| Thread 3 Drill In | 0.391 |
| Thread 3 Specification | SAE J514 |
| Body Hex In | 0.75 |
| C Hex 1 In | 0.875 |
| Overall Length L In | 1.25 |
| Centerline Length M In | 1.25 |
| Centerline Length M2 In | 1.38 |
| Centerline Length M3 In | 0.95 |
| Shape | Tee |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight Lbs | 0.282 |
| California Residents | Prop-65 Warning |
