6800-04-06

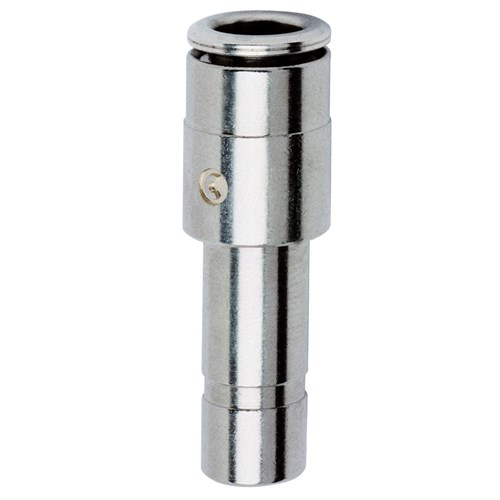

This heavy-duty metric tube reducer union stub is engineered to facilitate direct, streamlined down-sizing transitions within active pneumatic push-in systems. Built with a rigid metal shank and high-strength polymer bodies, it handles extreme lateral strain and high pressure variations without structural joint degradation. The plug-in stem architecture enables instant connection directly into existing push-in ports, eliminating complex fitting chains.

The optimized internal channel ensures uniform fluid acceleration through the line transition, eliminating turbulence and performance-limiting localized pressure drops. Its ultra-compact inline design provides clean, clutter-free plumbing inside tight control panels and close-coupled machine assemblies. This durable reducer plug ensures long-term leak-free operational security, significantly lowering system engineering complexity and maintenance labor.

• Toughened polymer-and-metal housing layout guarantees exceptional mechanical resistance against external side-loading and operational vibrations.
• Engineered bore reduction transition eliminates fluid velocity turbulence, maintaining balanced pressure across stepped fluid circuits.
• High-precision plug-in stem locks seamlessly into existing fitting sockets, providing reliable multi-stage routing layout options.
• Direct size bridging adapts larger pneumatic lines into smaller distribution lines without adding separate individual fittings.
• Instant insertion engineering removes any need for specialized assembly tooling, speeding complex plumbing and retrofitting operations.
• Double internal compound seals isolate variable pressures perfectly, maintaining constant air supply parameter safeties across loops.
• Ultra-light integrated body minimizes structural gravity load on flexible lines, reinforcing overall machine routing system durability.
