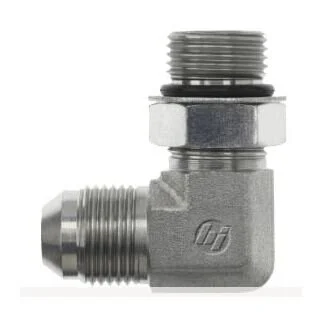

The 04MJ-04MAORB Forged 90�� Elbow Fitting is engineered for high-pressure hydraulic applications requiring secure and leak-proof connections. Featuring dual male threads���JIC 37�� Flare and SAE Adjustable O-Ring Boss (ORB)���this fitting ensures versatility and precision in demanding fluid power systems. Made from high-strength steel forging and finished with CR3 plating for superior corrosion resistance, it is built to withstand pressures up to 6,000 PSI. The integrated NBR O-ring seal offers enhanced sealing reliability, while the compact 90�� elbow shape provides ease of routing in tight installations. Ideal for hydraulic systems in construction, agriculture, and industrial machinery.
Fitting Chart- Dual Male Thread Ends ��� JIC 37�� flare & SAE ORB ensure flexible, secure connections.
- High Pressure Rated ��� Withstands up to 6,000 PSI for tough hydraulic environments.
- Forged Steel Body ��� Built from premium steel forging for maximum durability.
- CR3 Plating ��� Enhanced corrosion resistance for longer life in harsh conditions.
- Compact 90�� Design ��� Ideal for tight-space hydraulic routing and installations.
| Specification | Details |
| Thread B1 Type | Male JIC SAE 37�� Flare |
| Thread B1 Size | 7/16-20 |
| Thread B1 Drill In | 0.172 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male SAE Adjustable O-Ring Boss |
| Thread B2 Size | 7/16-20 |
| Thread B2 Drill In | 0.172 |
| Thread B2 Specification | SAE J514 |
| Body Hex | 0.438 in |
| C Hex 1 | 0.563 in |
| Overall Length (L) | 1.03 in |
| Centerline Length (M) | 0.89 in |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| O-Ring / Seal Material | NBR |
| Weight | 0.072 lbs |
| Maximum Dynamic Pressure | 6000 PSI |
| California Residents | Prop-65 Warning |
| Cubic in. (L �� W �� H) | 0.824 |
