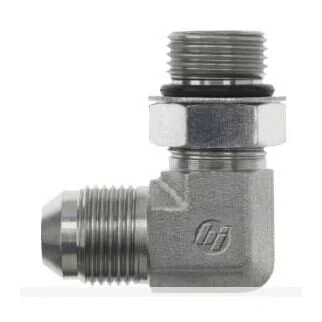

This 90? Forged Steel Elbow Fitting is built to deliver high performance in demanding hydraulic systems. Featuring a 9/16-18 Male JIC 37° Flare and a 7/16-20 Male SAE Adjustable O-Ring Boss (ORB), it provides a leak-resistant, high-pressure connection that meets SAE J514 standards. Made from precision-forged steel with CR3 plating for superior corrosion resistance, this elbow is rated up to 6,000 PSI, making it ideal for fluid power applications. Its compact 90-degree angle and NBR O-ring ensure a reliable seal and easy installation in tight spaces, making it perfect for agricultural, construction, and industrial machinery.
- Dual Thread Ends – 9/16–18 JIC + 7/16–20 ORB for versatile hydraulic connections.
- High Pressure Rated – Handles up to 6,000 PSI for heavy-duty performance.
- Forged Steel Body – Precision-forged for maximum strength and durability.
- CR3 Zinc Plating – Enhanced resistance against rust and corrosion.
- Compact 90° Design – Ideal for tight installation spaces in hydraulic circuits.
Specification | Details |
Thread B1 Type | Male JIC SAE 37° Flare |
Thread B1 Size | 9/16-18 |
Thread B1 Drill In | 0.297 |
Thread B1 Specification | SAE J514 |
Thread B2 Type | Male SAE Adjustable O-Ring Boss |
Thread B2 Size | 7/16-20 |
Thread B2 Drill In | 0.172 |
Thread B2 Specification | SAE J514 |
Body Hex | 0.562 in |
C Hex 1 | 0.563 in |
Overall Length (L) | 1.19 in |
Centerline Length (M) | 1.06 in |
Shape | 90 Degree |
Body Material | Steel |
Raw Material Type | Steel Forging |
Plating | Cr3 |
O-Ring / Seal Material | NBR |
Weight | 0.108 lbs |
Max Dynamic Pressure | 6,000 PSI |
California Residents | Prop-65 Warning |
Cubic in. (L ? W ? H) | 1.111 |
