Brennan Industries of Texas

6801-08-08-NWO-FG

6801-08-08-NWO-FG

Regular price $12.06 USD
Regular price Sale price $12.06 USD
Sale Sold out
  • Manufacturer Part #6801-08-08-NWO-FG
  • Unit Size 1
  • Brand Brennan Industries of Texas

Availability : Currently In Stock

Can’t Find The Product You Need? Just Ask Us! Get a Quote

View full details

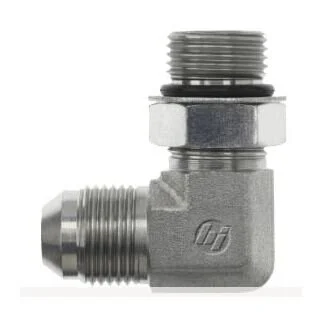

The Brennan 6801-08-08-NWO-FG hydraulic fitting provides a robust 90-degree elbow solution connecting a #8 Male JIC SAE 37° Flare thread to a #8 Male SAE Adjustable O-Ring Boss thread. Constructed from high-quality forged steel with a corrosion-resistant CR3 finish, this fitting ensures long-lasting performance under demanding conditions. The NBR O-ring seal guarantees a leak-free connection in hydraulic systems rated for pressures up to 6000 PSI. Its compact design, with a 1.45 overall length and 1.25 centerline length, is ideal for routing hoses or tubing in tight spaces. Designed to SAE J514 standards for consistent quality and reliability. Note: PROP-65 warning applies for California residents.

  • Thread Type: 8 Male JIC SAE 37? Flare (3/4-16) to 8 Male SAE Adjustable O-Ring Boss (3/4-16), both per SAE J514
  • Material: Forged steel body with corrosion-resistant CR3 plating for durability
  • Seal: NBR O-ring for reliable leak-proof connection
  • Design: Compact 90-degree elbow with 1.45" overall length and 1.25" centerline length for tight installations
  • Pressure Rated: Supports maximum dynamic pressure up to 6000 PSI
  • Compliance: Includes California PROP-65 warning
Specification Details
Thread B1 Type Male JIC SAE 37 Degree Flare
Thread B1 Size 3/4-16
Thread B1 Drill In 0.391
Thread B1 Specification SAE J514
Thread B2 Type Male SAE Adjustable O-Ring Boss
Thread B2 Size 3/4-16
Thread B2 Drill In 0.391
Thread B2 Specification SAE J514
Body Hex 0.75 in
C Hex 1 0.875 in
Overall Length (L) 1.45 in
Centerline Length (M) 1.25 in
Shape 90 Degree
Body Material Steel
Raw Material Type Steel Forging
Plating Cr3
O-Ring / Seal Material NBR
Weight 0.248 lbs
Maximum Dynamic Pressure 600 PSI
California Residents Prop-65 Warning
Cubic in. (L ? W ? H) 2.695
