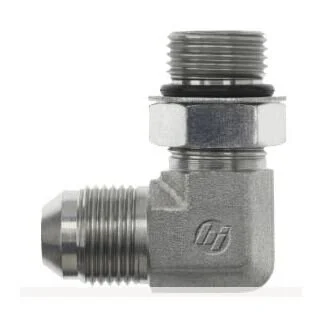

The Brennan 6801-08-10-NWO-FG hydraulic fitting provides a reliable 90-degree elbow connection between a #8 Male JIC SAE 37° Flare and a larger #10 Male SAE Adjustable O-Ring Boss. Made from high-strength forged steel and finished with corrosion-resistant CR3 plating, this fitting is engineered for durability and long service life in hydraulic systems. The NBR O-ring seal guarantees a tight, leak-proof joint capable of handling pressures up to 5000 PSI. Its compact form factor with a 1.7 overall length and 1.33 centerline length makes it ideal for installations in space-restricted hydraulic setups. Meets SAE J514 standards. PROP-65 warning applies for California residents.
- Thread Types:
- Male JIC SAE 37° Flare (3/4-16)
- Male SAE Adjustable O-Ring Boss (7/8-14)
- Material: Durable forged steel body with CR3 corrosion-resistant plating
- Seal: NBR O-ring ensures secure, leak-free connection
- Design: Compact 90° elbow with 1.7" overall length and 1.33" centerline length for tight hydraulic routing
- Pressure Rating: Supports dynamic pressure up to 5000 PSI
- Safety: Includes California PROP-65 warning
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill In | 0.391 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male SAE Adjustable Oring Boss |
| Thread B2 Size | 7/8-14 |
| Thread B2 Drill In | 0.484 |
| Thread B2 Specification | SAE J514 |
| Body Hex | 0.875 in |
| C Hex 1 | 1 in |
| Overall Length (L) | 1.7 in |
| Centerline Length (M) | 1.33 in |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| O-Ring / Seal Material | NBR |
| Weight | 0.352 lbs |
| Maximum Dynamic Pressure | 5000 PSI |
| California Residents | Prop-65 Warning |
| Cubic in. (L × W × H) | 3.912 |
