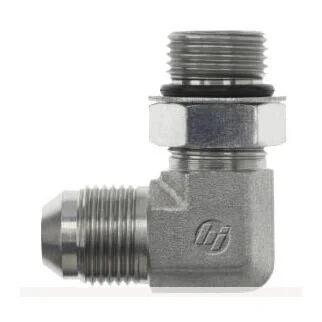

The Brennan 6801-08-12-NWO-FG hydraulic fitting features a 90-degree elbow design, connecting a #8 Male JIC SAE 37 Flare thread to a larger #12 Male SAE Adjustable O-Ring Boss thread. Constructed from high-quality forged steel with corrosion-resistant CR3 plating, this fitting ensures durability and dependable performance in hydraulic systems. The NBR O-ring seal provides a secure, leak-free connection, suitable for dynamic pressures up to 5000 PSI. Its compact 1.94 overall length and 1.42 centerline length make it ideal for installations where space is limited. Built to SAE J514 standards for consistent quality. Note: PROP-65 warning applies for California residents.
- Thread Types:
- Male JIC SAE 37 Flare (3/4-16)
- Male SAE Adjustable O-Ring Boss (1-1/16-12)
- Material: Forged steel body with corrosion-resistant CR3 plating
- Seal: NBR O-ring for reliable sealing and leak prevention
- Design: 90 elbow with 1.94" overall length and 1.42" centerline length for tight hydraulic layouts
- Pressure Rating: Maximum dynamic pressure up to 5000 PSI
- Safety: California PROP-65 warning applies
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill In | 0.391 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male SAE Adjustable Oring Boss |
| Thread B2 Size | 1-1/16-12 |
| Thread B2 Drill In | 0.609 |
| Thread B2 Specification | SAE J514 |
| Body Hex | 1.062 in |
| C Hex 1 | 1.25 in |
| Overall Length (L) | 1.94 in |
| Centerline Length (M) | 1.42 in |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| O-Ring / Seal Material | NBR |
| Weight | 0.6 lbs |
| Maximum Dynamic Pressure | 5000 PSI |
| California Residents | Prop-65 Warning |
| Cubic in. (L W H) | 6.316 |
