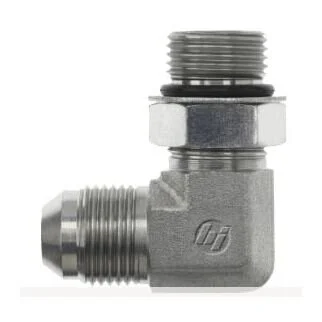

The Brennan 6801-10-10-NWO-FG hydraulic fitting offers a durable 90-degree elbow connection between two #10 Male threads: JIC SAE 37? Flare and SAE Adjustable O-Ring Boss. Manufactured from forged steel and finished with CR3 plating, it ensures long-lasting resistance to corrosion and wear. The NBR O-ring seal guarantees a tight, leak-free joint capable of withstanding pressures up to 5000 PSI. With a compact overall length of 1.7 and a centerline length of 1.45, this fitting is ideal for tight hydraulic system installations. Complies with SAE J514 specifications. PROP-65 warning applies for California residents.
- Thread Types:
- Male JIC SAE 37° Flare (7/8-14)
- Male SAE Adjustable O-Ring Boss (7/8-14)
- Material: Forged steel construction with CR3 corrosion-resistant plating
- Seal: NBR O-ring ensures secure, leak-proof connection
- Design: 90° elbow with 1.7" overall length and 1.45" centerline length for compact hydraulic routing
- Pressure Rating: Maximum dynamic pressure up to 5000 PSI
- Safety: Includes California PROP-65 warning
| Specification | Details |
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 7/8-14 |
| Thread B1 Drill In | 0.484 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male SAE Adjustable O-Ring Boss |
| Thread B2 Size | 7/8-14 |
| Thread B2 Drill In | 0.484 |
| Thread B2 Specification | SAE J514 |
| Body Hex | 0.875 in |
| C Hex 1 | 1 in |
| Overall Length (L) | 1.7 in |
| Centerline Length (M) | 1.45 in |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| O-Ring / Seal Material | NBR |
| Weight | 0.366 lbs |
| Maximum Dynamic Pressure | 5000 PSI |
| California Residents | Prop-65 Warning |
| Cubic in. (L ? W ? H) | 4.168 |
