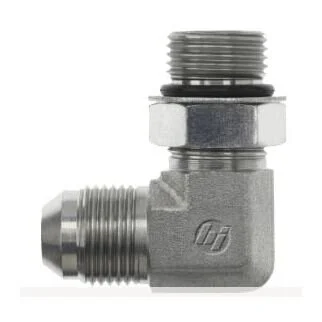

The Brennan 6801-12-08-NWO-FG hydraulic fitting features a robust 90-degree elbow design connecting #12 Male JIC SAE 37 Flare to #8 Male SAE Adjustable O-Ring Boss threads. Crafted from forged steel and finished with corrosion-resistant CR3 plating, this fitting is engineered to provide long-lasting durability in demanding hydraulic applications. The integrated NBR O-ring ensures a secure, leak-free connection capable of handling pressures up to 5000 PSI. Its compact design, with an overall length of 1.62 and a centerline length of 1.66, allows for efficient space utilization in hydraulic systems. Meets SAE J514 standards and includes the California PROP-65 warning for safe use.
- Thread Types:
- Male JIC SAE 37 Flare (1-1/16-12)
- Male SAE Adjustable O-Ring Boss (3/4-16)
- Material: Forged steel body with durable CR3 plating for corrosion resistance
- Seal: NBR O-ring for reliable, leak-proof sealing
- Design: 90 elbow shape with overall length 1.62" and centerline length 1.66" for efficient hydraulic system routing
- Pressure Rating: Maximum dynamic pressure up to 5000 PSI
- Safety: Includes California PROP-65 warning
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-1/16-12 |
| Thread B1 Drill In | 0.609 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male SAE Adjustable Oring Boss |
| Thread B2 Size | 3/4-16 |
| Thread B2 Drill In | 0.391 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 1.062 |
| C Hex 1 In | 0.875 |
| Overall Length L In | 1.62 |
| Centerline Length M In | 1.66 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| O-Ring / Seal Material | NBR |
| Weight Lbs | 0.5062 |
| Maximum Dynamic Pressure Psi | 5000 |
| California Residents | Prop-65 Warning |
| Cubic in. (L W H) | 5.005 |
