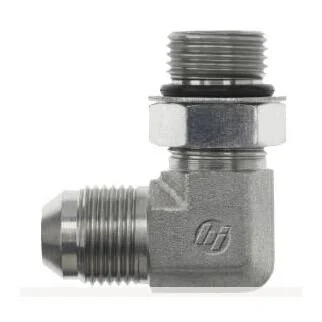

The Brennan 6801-12-12-NWO-FG hydraulic fitting offers a reliable 90-degree elbow connection between #12 Male JIC SAE 37° Flare and #12 Male SAE Adjustable O-Ring Boss threads. Constructed from high-strength forged steel and plated with CR3 for excellent corrosion resistance, this fitting is built to withstand demanding hydraulic environments. The NBR O-ring ensures tight sealing and prevents leaks under pressures up to 5000 PSI. With an overall length of 1.94 and a centerline length of 1.66, it optimizes space without sacrificing strength. Designed according to SAE J514 standards, this fitting is ideal for hydraulic systems requiring secure, durable connections.
- Thread Types:
- Male JIC SAE 37° Flare (1-1/16-12)
- Male SAE Adjustable O-Ring Boss (1-1/16-12)
- Material: Forged steel body with CR3 corrosion-resistant plating
- Seal: NBR O-ring for leak-free hydraulic connections
- Design: 90° elbow with overall length 1.94" and centerline length 1.66"
- Pressure Rating: Rated for max 5000 PSI dynamic pressure
- Safety: California PROP-65 warning included
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-1/16-12 |
| Thread B1 Drill In | 0.609 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male SAE Adjustable O-Ring Boss |
| Thread B2 Size | 1-1/16-12 |
| Thread B2 Drill In | 0.609 |
| Thread B2 Specification | SAE J514 |
| Body Hex | 1.062 in |
| C Hex 1 | 1.25 in |
| Overall Length (L) | 1.9 in |
| Centerline Length (M) | 1.66 in |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| O-Ring / Seal Material | NBR |
| Weight | 0.622 lbs |
| Maximum Dynamic Pressure | 5000 PSI |
| California Residents | Prop-65 Warning |
| Cubic in. (L × W × H) | 7.058 |
