Brennan Industries of Texas

6801-12-16-NWO-FG

6801-12-16-NWO-FG

Regular price $41.64 USD
Regular price Sale price $41.64 USD
Sale Sold out
  • Manufacturer Part #6801-12-16-NWO-FG
  • Unit Size 1
  • Brand Brennan Industries of Texas

Availability : Currently In Stock

Can’t Find The Product You Need? Just Ask Us! Get a Quote

View full details

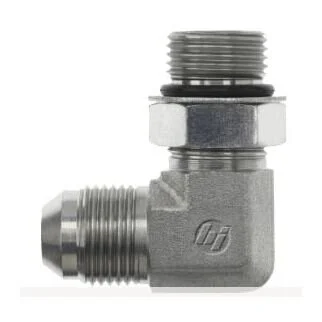

The Brennan 6801-12-16-NWO-FG hydraulic fitting is engineered for dependable 90-degree elbow connections between #12 Male JIC SAE 37° Flare and #16 Male SAE Adjustable O-Ring Boss threads. Made from forged steel and finished with corrosion-resistant CR3 plating, this fitting ensures durability in demanding hydraulic systems. The NBR O-ring seal guarantees leak-tight performance under pressures up to 4000 PSI. Measuring 2.05 in.in overall length and 1.76 in. centerline length, it provides efficient spatial fitment without compromising strength. Manufactured to SAE J514 standards, this fitting is ideal for secure, high-quality hydraulic connections.

  • Thread Types:
    • 12 Male JIC SAE 37° Flare (1-1/16-12)
    • 16 Male SAE Adjustable O-Ring Boss (1-5/16-12)
  • Material: Forged steel body with corrosion-resistant CR3 plating
  • Seal: NBR O-ring for reliable, leak-proof connections
  • Design: 90° elbow with overall length 2.05" and centerline length 1.76"
  • Pressure Rating: Maximum dynamic pressure up to 4000 PSI
  • Safety: Includes California PROP-65 warning
Specification Details
Thread B1 Type Male JIC SAE 37 Degree Flare
Thread B1 Size 1-1/16-12
Thread B1 Drill In 0.609
Thread B1 Specification SAE J514
Thread B2 Type Male SAE Adjustable O-Ring Boss
Thread B2 Size 1-5/16-12
Thread B2 Drill In 0.844
Thread B2 Specification SAE J514
Body Hex 1.312 in
C Hex 1 1.5 in
Overall Length (L) 2.05 in
Centerline Length (M) 1.76 in
Shape 90 Degree
Body Material Steel
Raw Material Type Steel Forging
Plating Cr3
O-Ring / Seal Material NBR
Weight 0.864 lbs
Maximum Dynamic Pressure 4000 PSI
California Residents Prop-65 Warning
Cubic in. (L × W × H) 10.188
