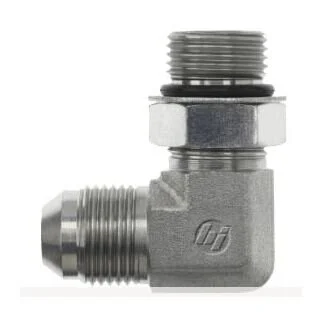

The #12 JIC x #12 Male SAE O-Ring Boss 90° Forged Elbow from Brennan Industries of Texas is a heavy-duty hydraulic fitting engineered for high-pressure performance. It features a #12 Male JIC 37° Flare (1-1/16-12) connection on one end and a #12 Male SAE Adjustable O-Ring Boss (1-5/8-12) connection on the other, providing secure, leak-free sealing in demanding hydraulic systems. Manufactured from forged steel and finished with Cr3 plating, this fitting delivers excellent strength and corrosion resistance. Rated for up to 4000 PSI dynamic pressure, its precise 90° elbow design allows efficient routing in compact hydraulic layouts.
Fitting Chart- #12 Male JIC 37° Flare (1-1/16-12) to #12 Male SAE Adjustable O-Ring Boss (1-5/8-12)
- Manufactured to SAE J514 standards for reliable, leak-free performance
- Includes NBR O-ring for positive sealing on the SAE ORB end
- Forged steel construction for superior strength in high-pressure applications
- Cr3 plated finish enhances corrosion and wear resistance
- Rated up to 4000 PSI dynamic pressure
- 90° elbow design enables efficient hose and tube routing in tight spaces
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-1/16-12 |
| Thread B1 Drill In | 0.609 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male SAE Adjustable Oring Boss |
| Thread B2 Size | 1-5/8-12 |
| Thread B2 Drill In | 1.078 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 1.625 |
| C Hex 1 In | 1.875 |
| Overall Length L In | 2.25 |
| Centerline Length M In | 1.97 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| O-Ring / Seal Material | Nbr |
| Weight Lbs | 1.478 |
| Maximum Dynamic Pressure Psi | 4000 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space L X W X H | 16.695 |
