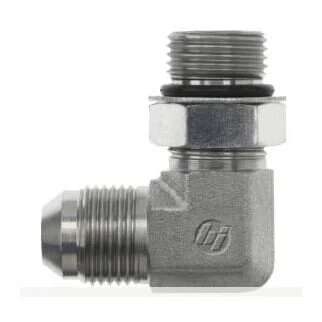

This Brennan Industries hydraulic fitting features a #16 Male JIC SAE 37 Flare connection to a #16 Male SAE Adjustable O-Ring Boss with a durable 90 elbow design. Manufactured from forged steel with corrosion-resistant CR3 plating, it ensures reliability and longevity in high-pressure hydraulic systems up to 4000 PSI. The NBR O-ring provides an effective seal to prevent leakage, making this fitting ideal for critical hydraulic applications requiring tight, secure connections.
- 90 elbow with male JIC 37 flare and SAE adjustable O-ring boss threads
- Made from forged steel with durable CR3 corrosion-resistant plating
- Rated for hydraulic pressures up to 4000 PSI
- NBR O-ring seal ensures leak-proof connections
- Compact design with SAE J514 standard threads for easy installation
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-5/16-12 |
| Thread B1 Drill In | 0.844 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male SAE Adjustable Oring Boss |
| Thread B2 Size | 1-5/16-12 |
| Thread B2 Drill In | 0.844 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 1.312 |
| C Hex 1 In | 1.5 |
| Overall Length L In | 2.05 |
| Centerline Length M In | 1.81 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| O-Ring / Seal Material | NBR |
| Weight Lbs | 0.884 |
| Maximum Dynamic Pressure Psi | 4000 |
| California Residents | Prop-65 Warning |
| Cubic in. (L W H) | 10.391 |
