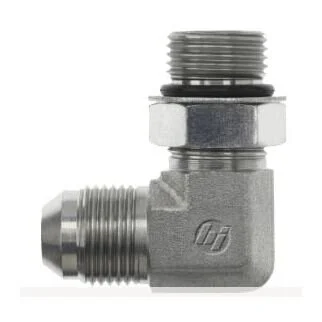

The 6801-20-24-NWO-FG is a heavy-duty 90-degree hydraulic elbow designed for high-pressure applications requiring secure, leak-resistant JIC to ORB adjustable connections. It features a 1-1/4" Male JIC 37 flare and a 1-1/2" Male SAE O-Ring Boss (adjustable) port, ensuring strong sealing performance even under demanding pressure cycles. Manufactured from forged steel and finished with Cr3 plating, this fitting resists corrosion while maintaining long service life. The built-in NBR O-ring ensures reliable sealing during installation and dynamic operation. Ideal for hydraulic systems where directional flow change and high strength are required.
Fitting Chart- 1-1/4" Male JIC to 1-1/2" Adjustable ORB (POS) elbow
- 90-degree design for directional fluid routing in tight spaces
- Made from high-strength steel forging for maximum durability
- Cr3 plating provides added corrosion protection
- NBR O-ring ensures secure, leak-proof sealing
- Rated for high performance up to 3000 PSI dynamic pressure
| Thread B1 Type | Male JIC SAE 37 Flare |
| Thread B1 Size | 1-5/8-12 |
| Thread B1 Drill | 1.078 in |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male SAE Adjustable O-Ring Boss |
| Thread B2 Size | 1-7/8-12 |
| Thread B2 Drill | 1.312 in |
| Thread B2 Specification | SAE J514 |
| Body Hex | 1.875 in |
| C Hex | 2.125 in |
| Overall Length (L) | 2.39 in |
| Centerline Length (M) | 2.2 in |
| Shape | 90 Elbow |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| O-Ring / Seal Material | NBR |
| Weight | 2.0562 lbs |
| Maximum Dynamic Pressure | 3000 PSI |
| Cubic Inch Space (L W H) | 23.069 in |
| Regulatory Notice | California Prop-65 Warning |
