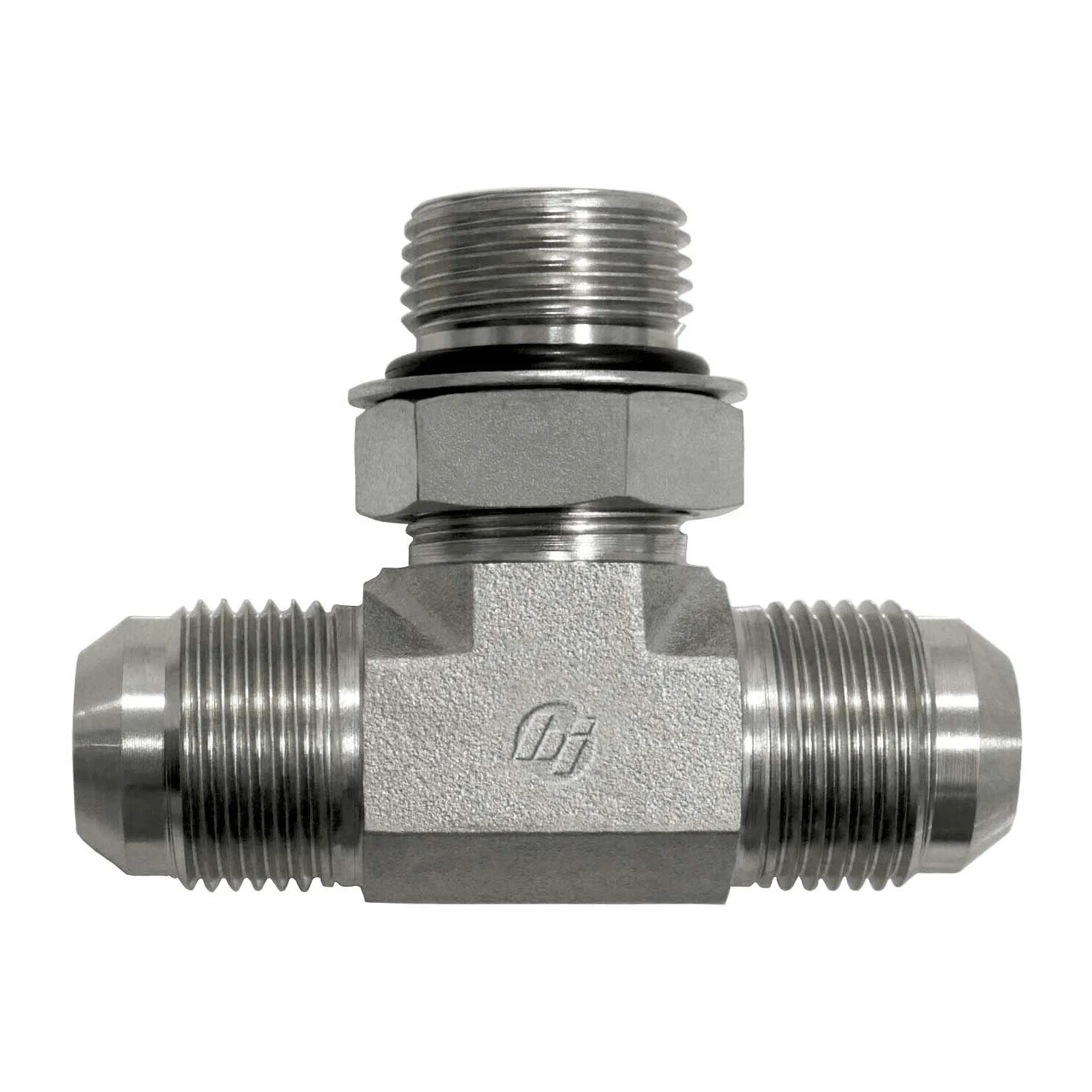

The 6803-08-08-08-NWO-FG is a high-pressure hydraulic tee designed for applications requiring strong, leak-proof JIC and ORB connections. This fitting features two 1/2" Male JIC 37° flare ends and one 1/2" Male SAE Adjustable O-Ring Boss port, offering excellent versatility in hydraulic line distribution. Built from durable steel forging and protected with Cr3 plating, it ensures long service life even in demanding environments. The NBR O-ring provides enhanced sealing performance and resistance to hydraulic fluids. Ideal for mobile equipment, industrial machinery, and high-pressure fluid routing systems.
Fitting Chart- Two 1/2" MJIC and one 1/2" adjustable MORB ports for versatile system integration
- 37° flare and ORB sealing ensure leak-free performance
- Heavy-duty steel forging construction for superior durability
- Cr3 plating offers reliable corrosion protection
- Includes NBR O-ring for enhanced seal integrity
- Designed for high-pressure hydraulic applications
| Thread B1 Type | Male JIC SAE 37° Flare |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill | 0.391 in |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male JIC SAE 37° Flare |
| Thread B2 Size | 3/4-16 |
| Thread B2 Drill | 0.391 in |
| Thread B2 Specification | SAE J514 |
| Thread 3 Type | Male SAE Adjustable O-Ring Boss |
| Thread 3 Size | 3/4-16 |
| Thread 3 Drill | 0.391 in |
| Thread 3 Specification | SAE J514 |
| Body Hex | 0.75 in |
| C Hex | 0.875 in |
| Overall Length (L) | 1.45 in |
| Centerline Length (M) | 1.25 in |
| Centerline Length (M2) | 1.25 in |
| Shape | Tee |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| O-Ring / Seal Material | NBR |
| Weight | 0.3 lbs |
| Regulatory Notice | California Prop-65 Warning |
